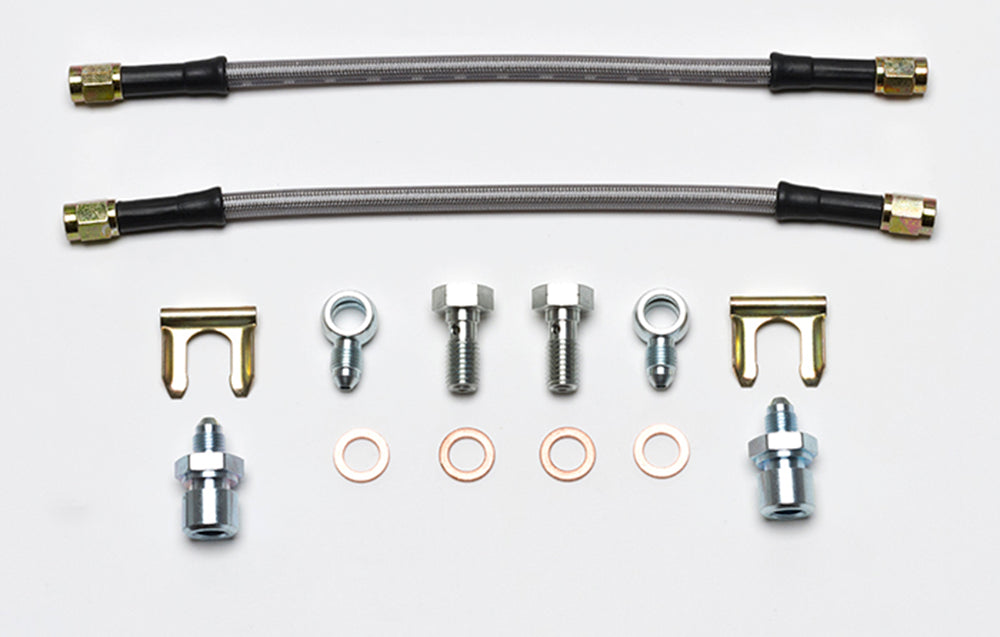

Wilwood Rear D154 Caliper Hose Set with 10 mm Banjo Connections, 10-Inch Lines

Wilwood identifies this compact 10-inch hose package specifically for D154 rear kits. It combines 10 mm banjo caliper fittings with imperial 3/8-24 inverted-flare chassis adapters and two straight-ended -3 hoses. Bill Wood founded Wilwood Engineering in 1977, and the manufacturer is based in Camarillo, California. Wilwood designs and manufactures disc brake systems alongside calipers, master cylinders, rotors, fittings, brake lines and valves. The motorsport, street-performance and specialized ranges depend on components selected to work within a complete braking system.

Technical Details

• Manufacturer part number: 220-12630
• Component: Brake flexline and fitting kit
• Hose length (inches): 10.00
• Line or fitting size: -3
• Chassis adapter connection: -3 to 3/8-24 inverted flare
• Hose inlet connection: -3 Female
• Hose inlet angle: Straight
• Hose outlet connection: -3 Female
• Hose outlet angle: Straight
• Caliper adapter angle: Banjo, 0 degrees
• Caliper connection: 10mm Banjo
• Caliper adapter reference: 220-10416
• Chassis adapter reference: 220-13124
• Chassis retaining clip reference: 300-15780
• Hose quantity: 2

Fitment & Compatibility

Confirm the D154 rear brake assembly, required banjo bolt and chassis connection before selecting the short line route. The rear application follows the manufacturer's kit identification, not a general D154 caliper assumption.

Manufacturer Documents

• Wilwood product specifications
• Wilwood flexline fitting guide

For a fitment check, give PMB Performance the vehicle year, brake configuration and details of both mating connections. Our team brings more than 20 years of parts and brake-system experience to the comparison.
