Product details

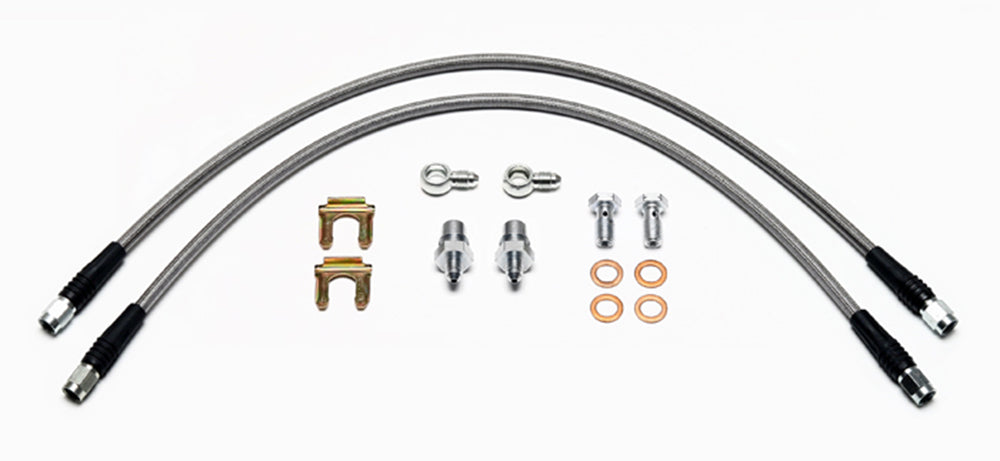

This D154 package keeps a metric connection at both the chassis and caliper interfaces. The 18-inch hoses connect to M10 x 1 bubble-flare adapters and 10 mm banjo fittings, distinguishing the kit from the imperial-chassis versions. Camarillo, California is home to Wilwood Engineering, founded by Bill Wood in 1977. Wilwood designs and manufactures disc brake systems, with calipers, brake rotors, master cylinders, fittings, valves and lines serving motorsport, street-performance and specialized uses. Select individual parts to meet the needs of the complete brake system.
Technical Details
- Manufacturer part number: 220-12107
- Component: Brake flexline and fitting kit
- Hose length (inches): 18.00
- Line or fitting size: -3
- Chassis adapter connection: -3 to M10 x 1 bubble flare
- Hose inlet connection: -3 Female
- Hose inlet angle: Straight
- Hose outlet connection: -3 Female
- Hose outlet angle: Straight
- Caliper adapter angle: Banjo, 0 degrees
- Caliper connection: 10mm Banjo
- Caliper adapter reference: 220-10416
- Chassis adapter reference: 220-6890
- Chassis retaining clip reference: 300-15780
- Hose quantity: 2
- Listed weight: 0.800 lb
Fitment & Compatibility
Use only when the chassis plumbing has the specified metric bubble-flare seat. Confirm the banjo bolt required by the D154 caliper and the route needed for the complete brake conversion.
Manufacturer Documents
Use PMB Performance's 20-plus years of experience when checking uncertain fitment. Identify the actual hose ends, port seats and brake package as well as the vehicle before ordering.
