Product details

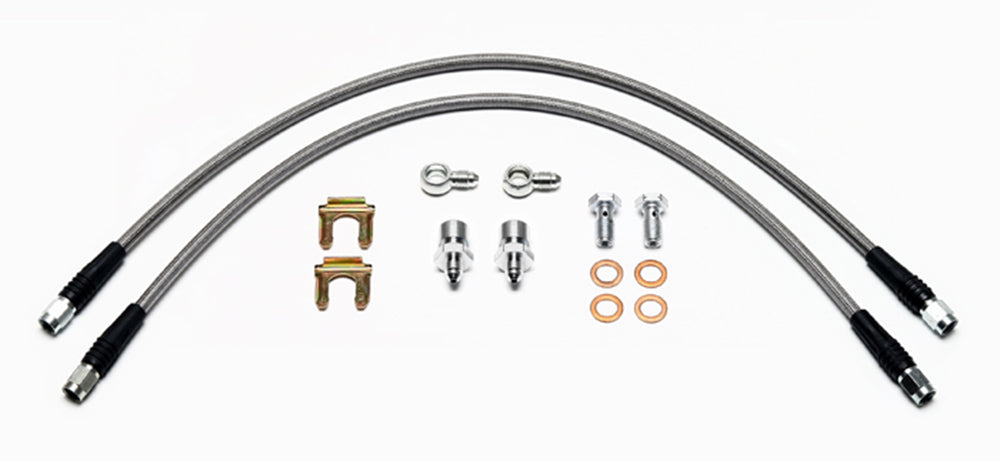

The 22-inch hoses provide the long-route configuration for D154 GM Metric calipers using 10 mm banjo hardware. A pair of 3/8-24 inverted-flare chassis adapters supplies the transition to the straight -3 female hose ends. The manufacturer, Wilwood Engineering, was established by Bill Wood in 1977 and is based in Camarillo, California. It designs and builds disc brake systems with a range covering calipers, brake rotors, master cylinders, valves, fittings and brake lines. Motorsport, street-performance and specialized applications require components selected for the complete braking system.
Technical Details
- Manufacturer part number: 220-12106
- Component: Brake flexline and fitting kit
- Hose length (inches): 22.00
- Line or fitting size: -3
- Chassis adapter connection: -3 to 3/8-24 inverted flare
- Hose inlet connection: -3 Female
- Hose inlet angle: Straight
- Hose outlet connection: -3 Female
- Hose outlet angle: Straight
- Caliper adapter angle: Banjo, 0 degrees
- Caliper connection: 10mm Banjo
- Caliper adapter reference: 220-10416
- Chassis adapter reference: 220-13124
- Chassis retaining clip reference: 300-15780
- Hose quantity: 2
- Listed weight: 1.000 lb
Fitment & Compatibility
Confirm that the installed conversion calls for this longer arrangement. Neither a D154 pad shape nor a GM vehicle name by itself verifies the required hose length or chassis connection.
Manufacturer Documents
For a fitment check, give PMB Performance the vehicle year, brake configuration and details of both mating connections. Our team brings more than 20 years of parts and brake-system experience to the comparison.
