Product details

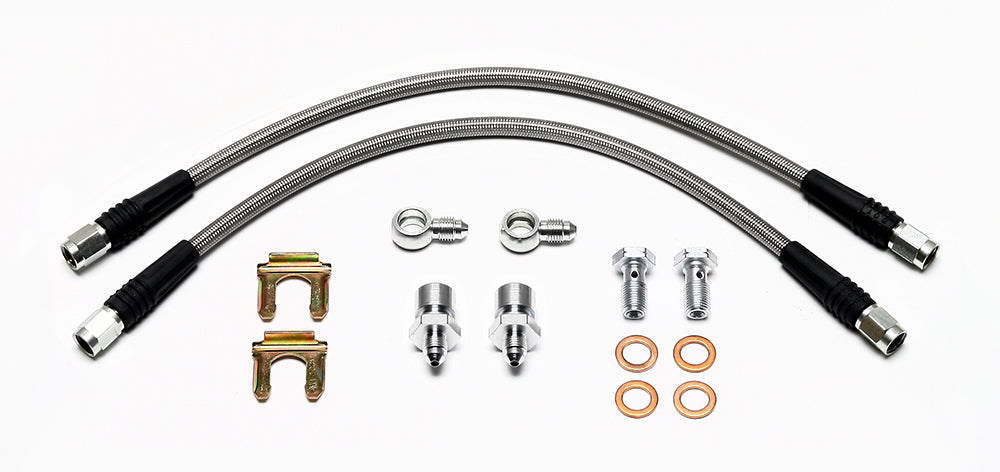

Wilwood identifies this short hose package for D154 GM Metric calipers. The two 14-inch lines join 10 mm banjo caliper fittings to separate 3/8-24 inverted-flare chassis adapters. Bill Wood’s 1977 founding of Wilwood Engineering began a disc brake design and manufacturing business based in Camarillo, California. The range includes master cylinders, calipers, rotors, brake lines, valves and fittings for motorsport, street-performance and specialized vehicles. Component selection must consider the complete braking arrangement.
Technical Details
- Manufacturer part number: 220-12104
- Component: Brake flexline and fitting kit
- Hose length (inches): 14.00
- Line or fitting size: -3
- Chassis adapter connection: -3 to 3/8-24 inverted flare
- Hose inlet connection: -3 Female
- Hose inlet angle: Straight
- Hose outlet connection: -3 Female
- Hose outlet angle: Straight
- Caliper adapter angle: Banjo, 0 degrees
- Caliper connection: 10mm Banjo
- Caliper adapter reference: 220-10416
- Chassis adapter reference: 220-13124
- Chassis retaining clip reference: 300-15780
- Hose quantity: 2
- Listed weight: 0.800 lb
Fitment & Compatibility
Select the actual D154 caliper and its correct banjo bolt. The caliper family and thread combination are essential; a general GM brake description is not enough to substitute another hose kit.
Manufacturer Documents
PMB Performance draws on over 20 years of brake and parts experience. Clear photographs of the connections and the installed brake package are useful when confirming this component.
