Product details

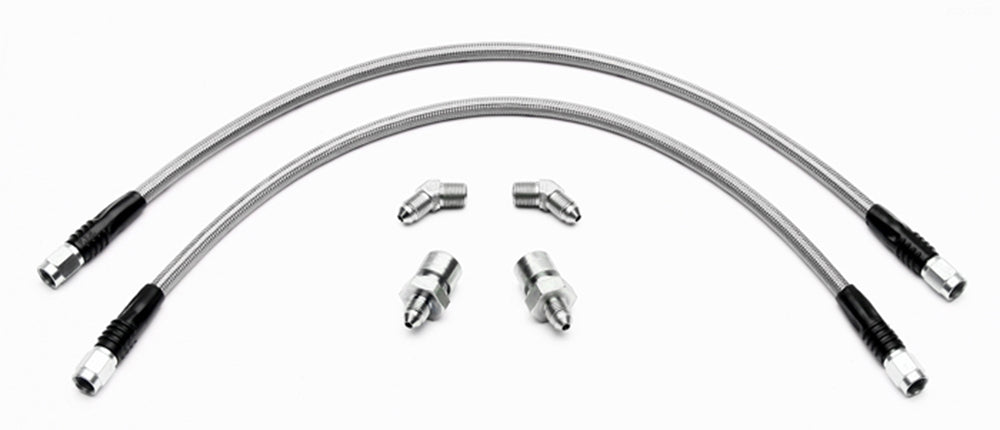

The Factory Five front DP6 arrangement uses 18-inch hoses and 45-degree caliper inlet adapters. Separate 3/8-24 inverted-flare chassis fittings mate with the straight -3 female ends on both braided lines. Disc brake system design and manufacturing are Wilwood Engineering’s focus. Bill Wood founded the Camarillo, California company in 1977; its range spans brake rotors, master cylinders, calipers, fittings, valves and brake lines for motorsport, specialized and street-performance applications. The choice of individual components depends on the complete brake system.
Technical Details
- Manufacturer part number: 220-12092
- Component: Brake flexline and fitting kit
- Hose length (inches): 18.00
- Line or fitting size: -3
- Chassis adapter connection: -3 to 3/8-24 inverted flare
- Hose inlet connection: -3 Female
- Hose inlet angle: Straight
- Hose outlet connection: -3 Female
- Hose outlet angle: Straight
- Caliper adapter angle: 45 Degree
- Caliper connection: 1/8-27 NPT
- Caliper adapter reference: 220-6412
- Chassis adapter reference: 220-13124
- Hose quantity: 2
- Listed weight: 0.800 lb
Fitment & Compatibility
Match the Factory Five chassis and DP6 conversion specified by the installation instructions. Factory Five identification alone does not establish the mounting points, line length or caliper-port arrangement.
Manufacturer Documents
If the brake system has been modified, contact PMB Performance with the installed component references and routing dimensions. We have more than 20 years of experience helping match brake parts to their applications.
