Product details

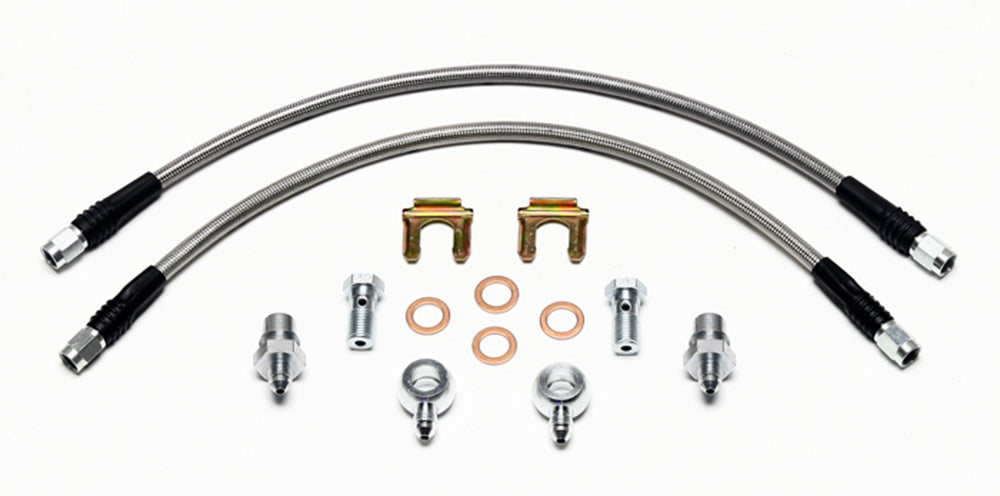

The rear line package named for Ford Fiesta and Fiat 500 conversions uses a 10 mm banjo connection at the caliper. Two 14-inch hoses and M10 x 1 bubble-flare chassis adapters make up the compact hydraulic arrangement. Wilwood Engineering is a designer and manufacturer of disc brake systems and components, founded by Bill Wood in 1977 and based in Camarillo, California. Calipers, brake rotors, master cylinders, valves, fittings and brake lines support its motorsport, street-performance and specialized applications. Each is selected according to the requirements of the complete brake system.
Technical Details
- Manufacturer part number: 220-11909
- Component: Brake flexline and fitting kit
- Hose length (inches): 14.00
- Line or fitting size: -3
- Chassis adapter connection: -3 to M10 x 1 bubble flare
- Hose inlet connection: -3 Female
- Hose inlet angle: Straight
- Hose outlet connection: -3 Female
- Hose outlet angle: Straight
- Caliper adapter angle: Banjo, 0 degrees
- Caliper connection: 10mm Banjo
- Caliper adapter reference: 220-10416
- Chassis adapter reference: 220-6890
- Chassis retaining clip reference: 300-15780
- Hose quantity: 2
- Listed weight: 0.800 lb
Fitment & Compatibility
Wilwood's current kit notes include Fiesta and Fiat 500 from 2011 onward. Match the actual rear conversion and its caliper before ordering; these banjo fittings do not establish fitment for every factory rear brake configuration.
Manufacturer Documents
PMB Performance draws on over 20 years of brake and parts experience. Clear photographs of the connections and the installed brake package are useful when confirming this component.
