Product details

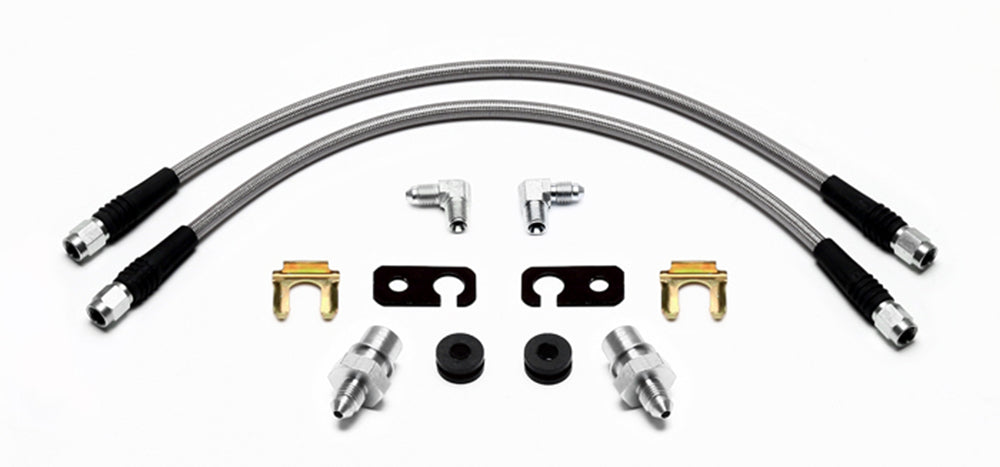

These 16-inch front hoses link the Fiesta's specified metric bubble-flare interface to the NPT ports of a compatible Wilwood conversion. Separate elbows, chassis adapters and retaining hardware accompany the two straight-ended lines. Bill Wood founded Wilwood Engineering in 1977. From its base in Camarillo, California, Wilwood designs and manufactures disc brake systems and components for motorsport, street-performance and specialized use, including calipers, brake rotors, master cylinders, valves, fittings and brake lines. Compatibility with the complete brake system governs selection of the individual components.
Technical Details
- Manufacturer part number: 220-11906
- Component: Brake flexline and fitting kit
- Hose length (inches): 16.00
- Line or fitting size: -3
- Chassis adapter connection: -3 to M10 x 1 bubble flare
- Hose inlet connection: -3 Female
- Hose inlet angle: Straight
- Hose outlet connection: -3 Female
- Hose outlet angle: Straight
- Caliper adapter angle: 90 Degree
- Caliper connection: 1/8-27 NPT
- Caliper adapter reference: 220-13125
- Chassis adapter reference: 220-6890
- Chassis retaining clip reference: 300-15780
- Line support reference: 250-8361
- Hose quantity: 2
- Listed weight: 1.000 lb
Fitment & Compatibility
The manufacturer's reference begins with the 2011 Fiesta. Confirm the conversion's supported model years and bracket arrangement instead of treating the open-ended kit note as universal Fiesta fitment.
Manufacturer Documents
With more than 20 years of experience, PMB Performance can assist with brake-component selection. Provide the vehicle and installed brake details so the connection and mounting requirements can be checked together.
