Product details

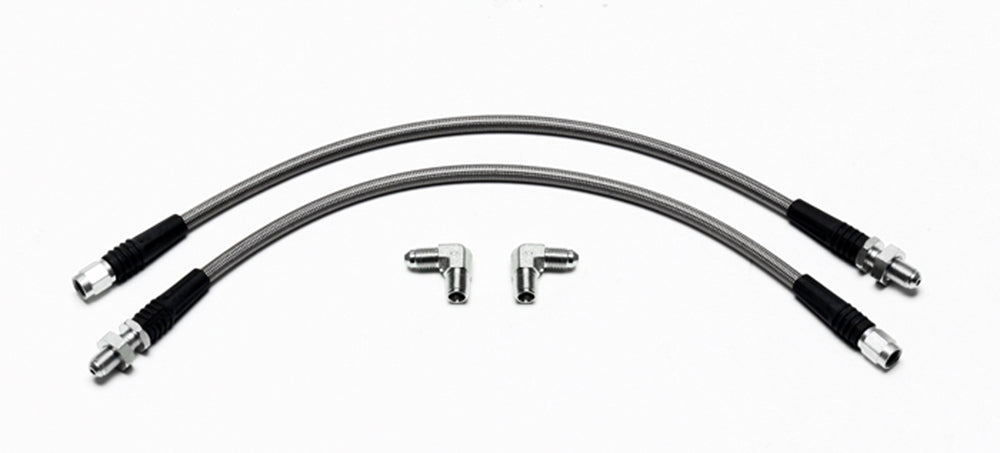

A convex 3/8-24 chassis seat is the key distinction in this Sunbeam Tiger front hose pair. The 15-inch lines transition to -3 female outlet ends and separate 90-degree NPT caliper fittings. The Wilwood range brings together calipers, brake rotors, master cylinders, valves, fittings and brake lines for complete-system component selection. Wilwood Engineering was founded by Bill Wood in 1977, is based in Camarillo, California, and designs and manufactures disc brake systems and components for motorsport, street-performance and specialized applications.
Technical Details
- Manufacturer part number: 220-11863
- Component: Brake flexline and fitting kit
- Hose length (inches): 15.00
- Line or fitting size: -3
- Chassis adapter connection: 3/8-24 Convex
- Hose inlet connection: 3/8-24 Convex
- Hose inlet angle: Straight
- Hose outlet connection: -3 Female
- Hose outlet angle: 90 Degree
- Caliper adapter angle: 90 Degree
- Caliper connection: 1/8-27 NPT
- Caliper adapter reference: 220-13125
- Hose quantity: 2
- Listed weight: 0.800 lb
Fitment & Compatibility
Compare the existing chassis seat as well as its thread size before connecting the line. Use the specified Wilwood Tiger front conversion, checking the steering route and mounting clearance on the car.
Manufacturer Documents
If the brake system has been modified, contact PMB Performance with the installed component references and routing dimensions. We have more than 20 years of experience helping match brake parts to their applications.
