Product details

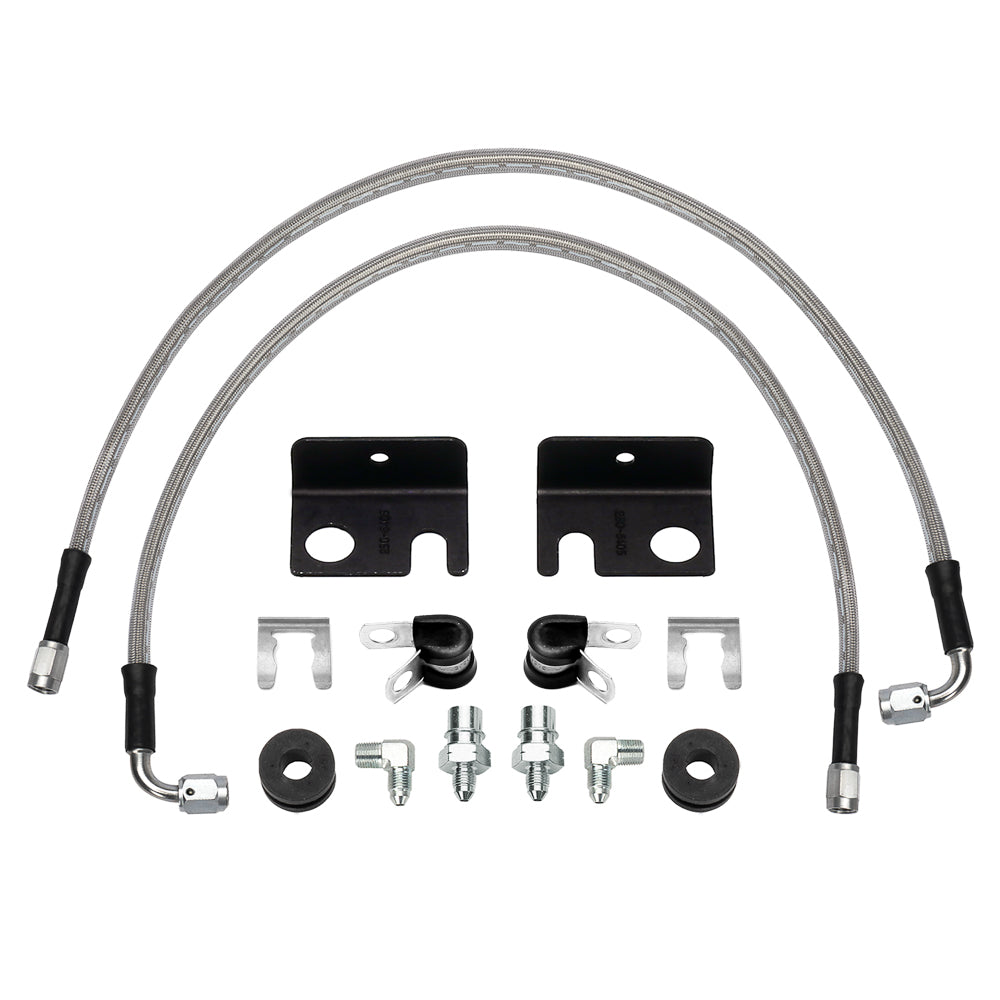

This Honda Fit front-line package combines long 22-inch braided hoses with mounting brackets and metric bubble-flare chassis adapters. The caliper connection uses a separate 90-degree NPT fitting, while the hose's outlet end is also angled. Wilwood Engineering was founded in 1977 by Bill Wood and is based in Camarillo, California. The company designs and manufactures disc brake systems and components, including calipers, brake rotors, master cylinders, valves, fittings and brake lines, for motorsport, street-performance and specialized applications. Each part is selected to match the complete brake system.
Technical Details
- Manufacturer part number: 220-11790
- Component: Brake flexline and fitting kit
- Hose length (inches): 22.00
- Line or fitting size: -3
- Chassis adapter connection: -3 to M10 x 1 bubble flare
- Hose inlet connection: -3 Female
- Hose inlet angle: Straight
- Hose outlet connection: -3 Female
- Hose outlet angle: 90 Degree
- Caliper adapter angle: 90 Degree
- Caliper connection: 1/8-27 NPT
- Caliper adapter reference: 220-13125
- Chassis adapter reference: 220-6890
- Chassis retaining clip reference: 300-15780
- Line support reference: 250-6405 / 250-6406
- Hose quantity: 2
- Listed weight: 1.000 lb
Fitment & Compatibility
Wilwood names a 2001-onward Fit application in its kit notes. Confirm the actual generation and installed Wilwood conversion; this open-ended reference does not establish compatibility with every later Fit or a factory caliper.
