Product details

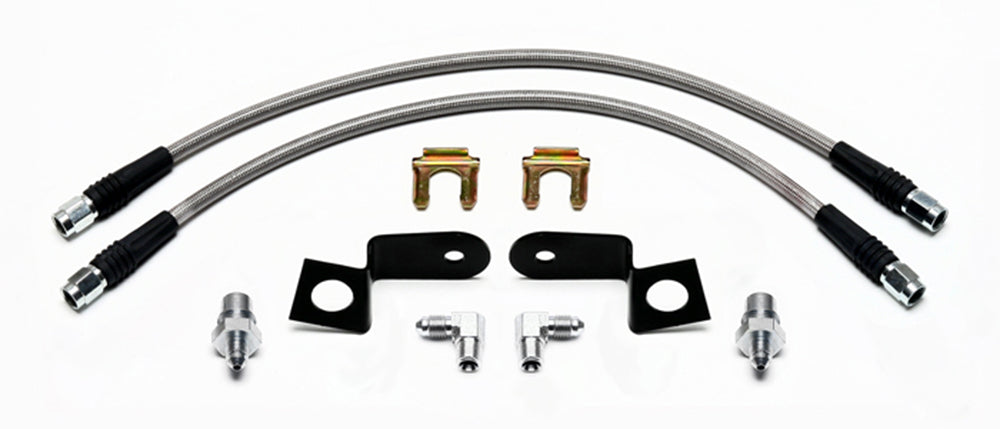

Rear brake conversions in the listed Dodge and Chrysler family use a different chassis flare arrangement from the corresponding front package. These 16-inch hoses use straight ends, M10 x 1 bubble-flare adapters and the rear mounting brackets identified by Wilwood. The complete brake system's requirements guide the selection of individual Wilwood components. Founded by Bill Wood in 1977 and based in Camarillo, California, Wilwood Engineering designs and manufactures disc brake systems for motorsport, street-performance and specialized applications. Its component range includes calipers, brake rotors, master cylinders, valves, fittings and brake lines.
Technical Details
- Manufacturer part number: 220-11772
- Component: Brake flexline and fitting kit
- Hose length (inches): 16.00
- Line or fitting size: -3
- Chassis adapter connection: -3 to M10 x 1 bubble flare
- Hose inlet connection: -3 Female
- Hose inlet angle: Straight
- Hose outlet connection: -3 Female
- Hose outlet angle: Straight
- Caliper adapter angle: 90 Degree
- Caliper connection: 1/8-27 NPT
- Caliper adapter reference: 220-13125
- Chassis adapter reference: 220-6890
- Chassis retaining clip reference: 300-15780
- Line support reference: 250-11776 / 250-11777
- Hose quantity: 2
- Listed weight: 1.000 lb
Fitment & Compatibility
Check the rear conversion on the actual Magnum, Charger, Challenger or 300C. The manufacturer's grouped 2005–2010 reference does not mean each named model exists throughout that full period or uses the same original brake plumbing.
Manufacturer Documents
Use PMB Performance's 20-plus years of experience when checking uncertain fitment. Identify the actual hose ends, port seats and brake package as well as the vehicle before ordering.
