Product details

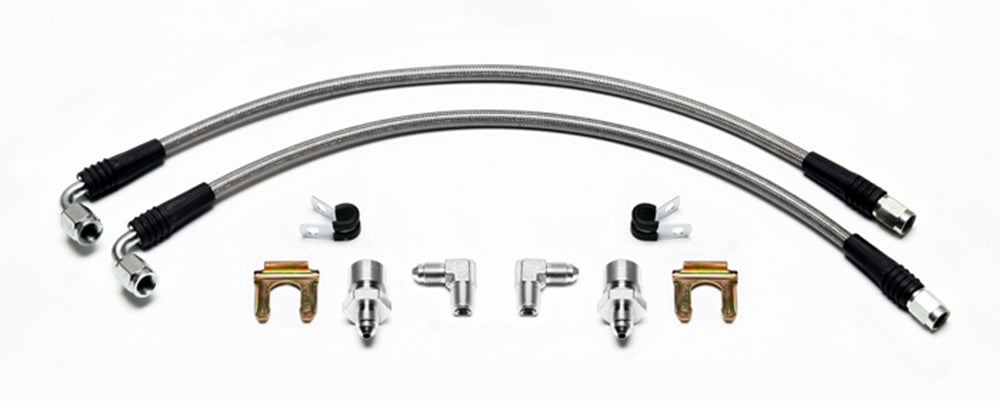

The front plumbing package for these Dodge and Chrysler conversions uses 16-inch lines with angled outlet hose ends. Metric inverted-flare chassis adapters and separate NPT elbows complete the hydraulic path, distinguishing it from the rear kit's bubble-flare connection. Since its founding by Bill Wood in 1977, Wilwood Engineering has developed a range serving motorsport, street-performance and specialized brake applications. Based in Camarillo, California, it designs and manufactures disc brake systems, calipers, brake rotors, master cylinders, valves, fittings and brake lines. Each component should be selected for compatibility with the complete braking system.
Technical Details
- Manufacturer part number: 220-11771
- Component: Brake flexline and fitting kit
- Hose length (inches): 16.00
- Line or fitting size: -3
- Chassis adapter connection: -3 to M10 x 1 inverted flare
- Hose inlet connection: -3 Female
- Hose inlet angle: Straight
- Hose outlet connection: -3 Female
- Hose outlet angle: 90 Degree
- Caliper adapter angle: 90 Degree
- Caliper connection: 1/8-27 NPT
- Caliper adapter reference: 220-13125
- Chassis adapter reference: 220-6413
- Chassis retaining clip reference: 300-15780
- Line support reference: 300-11636
- Hose quantity: 2
- Listed weight: 1.000 lb
Fitment & Compatibility
Wilwood groups Magnum, Charger, Challenger and 300C applications under 2005–2010 kit notes. The individual models have different production years; confirm the specific vehicle and conversion rather than applying that family span to every model.
Manufacturer Documents
For a fitment check, give PMB Performance the vehicle year, brake configuration and details of both mating connections. Our team brings more than 20 years of parts and brake-system experience to the comparison.
