Product details

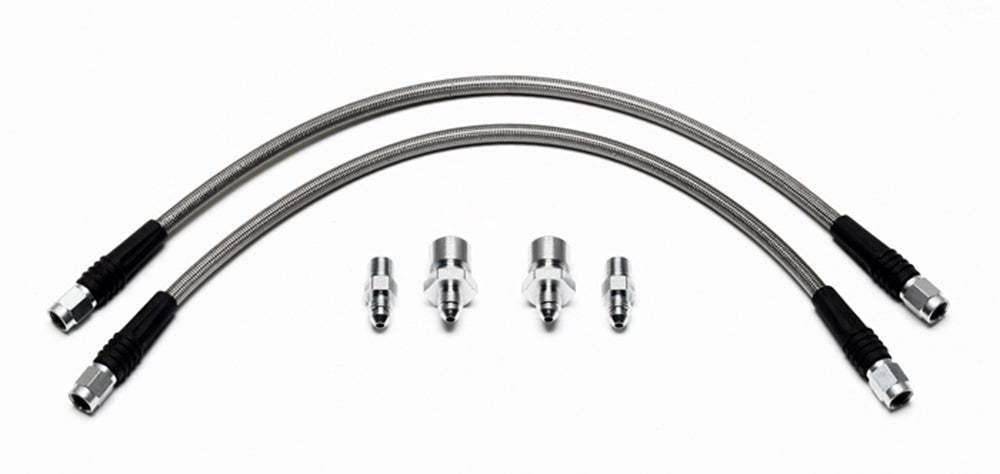

Straight hose ends and straight NPT caliper fittings define this Mazda Miata front-conversion kit. The two 16-inch lines connect to M10 x 1 inverted-flare chassis adapters, without the angled caliper fittings used by some other arrangements. The manufacturer is Wilwood Engineering, established by Bill Wood in 1977 and based in Camarillo, California. Wilwood designs and manufactures disc brake systems for motorsport, street-performance and specialized applications, supplying calipers, brake rotors, master cylinders, valves, fittings and brake lines whose selection must suit the complete brake system.
Technical Details
- Manufacturer part number: 220-11751
- Component: Brake flexline and fitting kit
- Hose length (inches): 16.00
- Line or fitting size: -3
- Chassis adapter connection: -3 to M10 x 1 inverted flare
- Hose inlet connection: -3 Female
- Hose inlet angle: Straight
- Hose outlet connection: -3 Female
- Hose outlet angle: Straight
- Caliper adapter angle: Straight
- Caliper connection: 1/8-27 NPT
- Caliper adapter reference: 220-6956
- Chassis adapter reference: 220-6413
- Hose quantity: 2
- Listed weight: 0.800 lb
Fitment & Compatibility
Wilwood's application heading states 1995–2005 Miata, while the kit notes state 1990–2005. Confirm the applicable front conversion for earlier cars before relying on the broader range.
Manufacturer Documents
PMB Performance can help compare the fitting arrangement with your brake system, drawing on over 20 years of experience. Include the vehicle details and clear views of the mating hardware.
