Product details

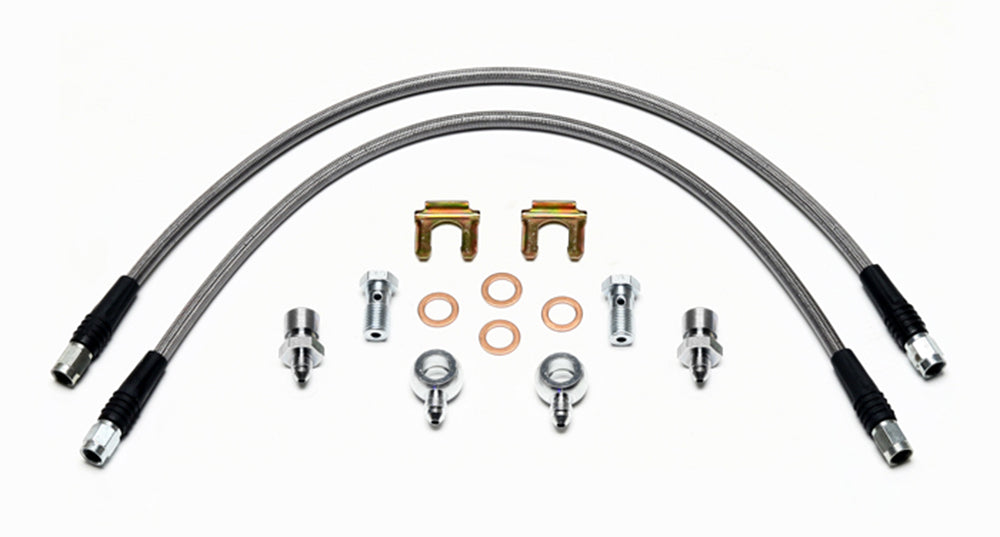

The 20-inch D52 hose arrangement retains a 7/16-20 banjo-bolt interface while providing additional route length over the shorter kits. Two braided -3 hoses, chassis adapters and banjo hardware form the connection package. Wilwood Engineering, founded in 1977 by Bill Wood, designs and manufactures disc brake systems and components in its role as a Camarillo, California-based brake specialist. Its range serves motorsport, street-performance and specialized applications through calipers, brake rotors, master cylinders, valves, fittings and brake lines. Selection of each part must match the complete brake system's requirements.
Technical Details
- Manufacturer part number: 220-11718
- Component: Brake flexline and fitting kit
- Hose length (inches): 20.00
- Line or fitting size: -3
- Chassis adapter connection: -3 to 3/8-24 inverted flare
- Hose inlet connection: -3 Female
- Hose inlet angle: Straight
- Hose outlet connection: -3 Female
- Hose outlet angle: Straight
- Caliper adapter angle: Straight
- Caliper connection: 7/16" Banjo
- Caliper adapter reference: 220-11325
- Chassis adapter reference: 220-13124
- Chassis retaining clip reference: 300-15780
- Hose quantity: 2
- Listed weight: 1.000 lb
Fitment & Compatibility
Use the length required by the installed D52 brake assembly, with the correct bolt thread and flare seat established first. More hose length is not a substitute for verifying a secure, unobstructed route.
