Product details

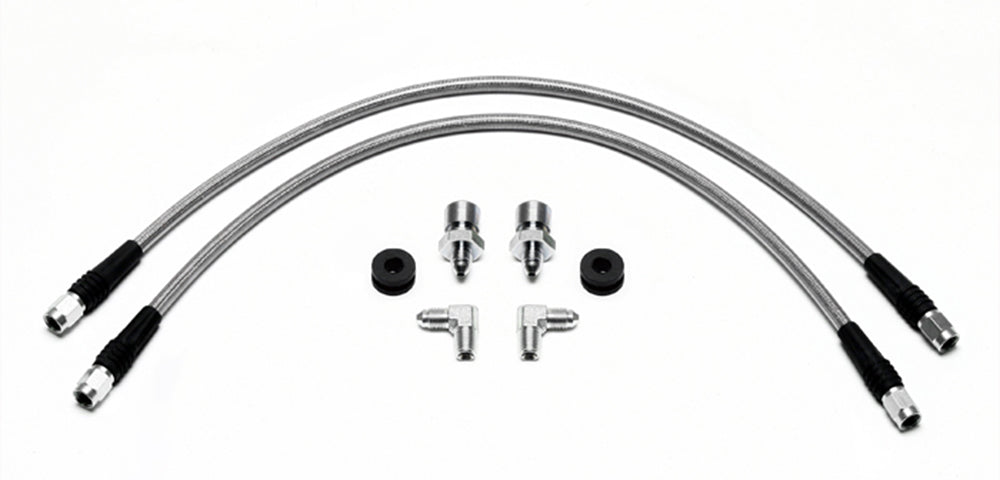

Wilwood's current kit notes identify front and rear Camaro conversion use for this two-hose package. Each 20-inch line has straight -3 female ends, connecting the metric chassis adapter to a separate 90-degree NPT caliper fitting. Wilwood Engineering's range covers calipers, brake rotors, master cylinders, valves, fittings and brake lines, selected to meet the needs of a complete brake system. The company was founded by Bill Wood in 1977 and is based in Camarillo, California, designing and manufacturing disc brake systems for motorsport, street-performance and specialized applications.
Technical Details
- Manufacturer part number: 220-11382
- Component: Brake flexline and fitting kit
- Hose length (inches): 20.00
- Line or fitting size: -3
- Chassis adapter connection: -3 to M10 x 1 inverted flare
- Hose inlet connection: -3 Female
- Hose inlet angle: Straight
- Hose outlet connection: -3 Female
- Hose outlet angle: Straight
- Caliper adapter angle: 90 Degree
- Caliper connection: 1/8-27 NPT
- Caliper adapter reference: 220-13125
- Chassis adapter reference: 220-6413
- Line support reference: 250-8361
- Hose quantity: 2
- Listed weight: 0.800 lb
Fitment & Compatibility
The 2010–2018 range in the manufacturer's notes is conditional on the specified Wilwood brake kit. Verify the axle location, caliper ports and bracket arrangement; a pair of hoses does not constitute a four-corner package.
Manufacturer Documents
PMB Performance has over 20 years of experience with brake components and fitment. Send the vehicle details, installed brake kit and connection measurements if you need help choosing the correct plumbing.
