Product details

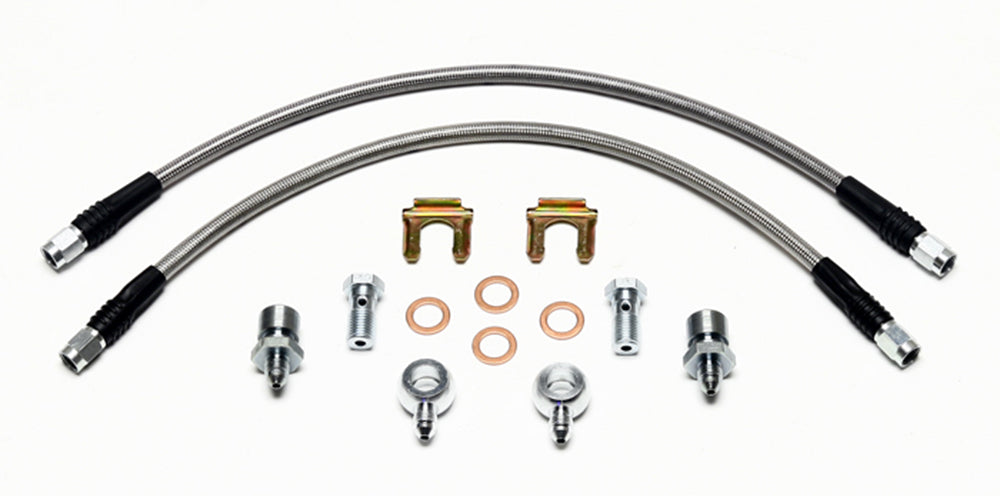

A 16-inch line length sits between the shorter and longer D52 arrangements, with imperial banjo hardware at the caliper. This two-hose kit provides -3 connections and the 3/8-24 chassis adapters needed for the listed hydraulic layout. For Wilwood Engineering, component selection forms part of matching a complete brake system to its application. Founded in 1977 by Bill Wood and based in Camarillo, California, the company designs and manufactures disc brake systems and a range of calipers, brake rotors, master cylinders, valves, fittings and brake lines for motorsport, street-performance and specialized applications.
Technical Details
- Manufacturer part number: 220-11372
- Component: Brake flexline and fitting kit
- Hose length (inches): 16.00
- Line or fitting size: -3
- Chassis adapter connection: -3 to 3/8-24 inverted flare
- Hose inlet connection: -3 Female
- Hose inlet angle: Straight
- Hose outlet connection: -3 Female
- Hose outlet angle: Straight
- Caliper adapter angle: Straight
- Caliper connection: 7/16" Banjo
- Caliper adapter reference: 220-11325
- Chassis adapter reference: 220-13124
- Chassis retaining clip reference: 300-15780
- Hose quantity: 2
- Listed weight: 0.800 lb
Fitment & Compatibility
Choose the 16-inch route only after allowing for steering and suspension movement. The caliper must accept the specified 7/16-20 banjo connection, not the visually similar 10 mm alternative.
Manufacturer Documents
For a fitment check, give PMB Performance the vehicle year, brake configuration and details of both mating connections. Our team brings more than 20 years of parts and brake-system experience to the comparison.
