Product details

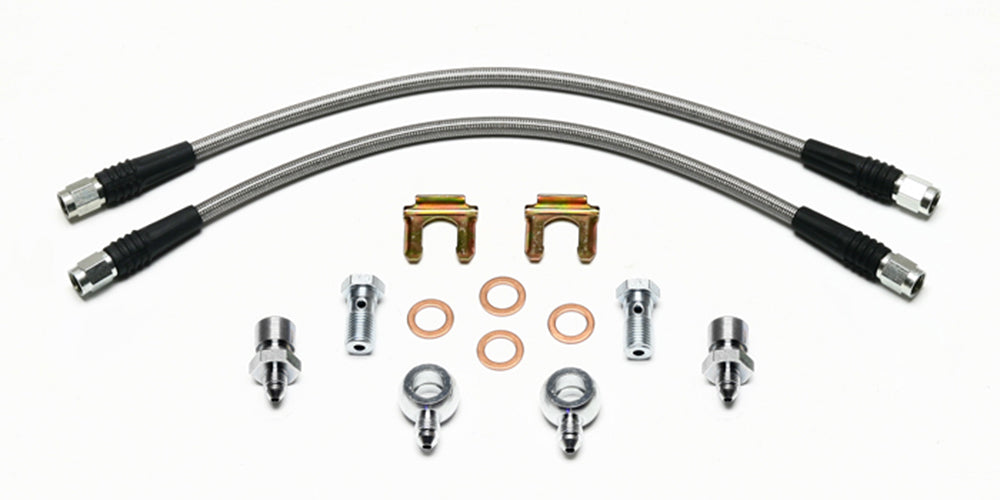

The 14-inch D52 hose pair is arranged around a 7/16-20 banjo connection and a 3/8-24 inverted-flare chassis adapter. Straight female -3 hose ends join the separate fittings, keeping the hose configuration distinct from the caliper's bolt specification. Bill Wood established Wilwood Engineering in 1977, and the company is based in Camarillo, California. It designs and manufactures disc brake systems, including calipers, brake rotors, master cylinders, valves, fittings and brake lines, for motorsport, street-performance and specialized use. The individual parts must be selected as compatible elements of the complete brake system.
Technical Details
- Manufacturer part number: 220-11371
- Component: Brake flexline and fitting kit
- Hose length (inches): 14.00
- Line or fitting size: -3
- Chassis adapter connection: -3 to 3/8-24 inverted flare
- Hose inlet connection: -3 Female
- Hose inlet angle: Straight
- Hose outlet connection: -3 Female
- Hose outlet angle: Straight
- Caliper adapter angle: Straight
- Caliper connection: 7/16" Banjo
- Caliper adapter reference: 220-11325
- Chassis adapter reference: 220-13124
- Chassis retaining clip reference: 300-15780
- Hose quantity: 2
- Listed weight: 0.800 lb
Fitment & Compatibility
Confirm that the D52 caliper uses the imperial banjo bolt specified for this kit. Other D52 hose kits use metric hardware or different lengths, which must not be chosen by caliper family alone.
Manufacturer Documents
PMB Performance can help compare the fitting arrangement with your brake system, drawing on over 20 years of experience. Include the vehicle details and clear views of the mating hardware.
