Product details

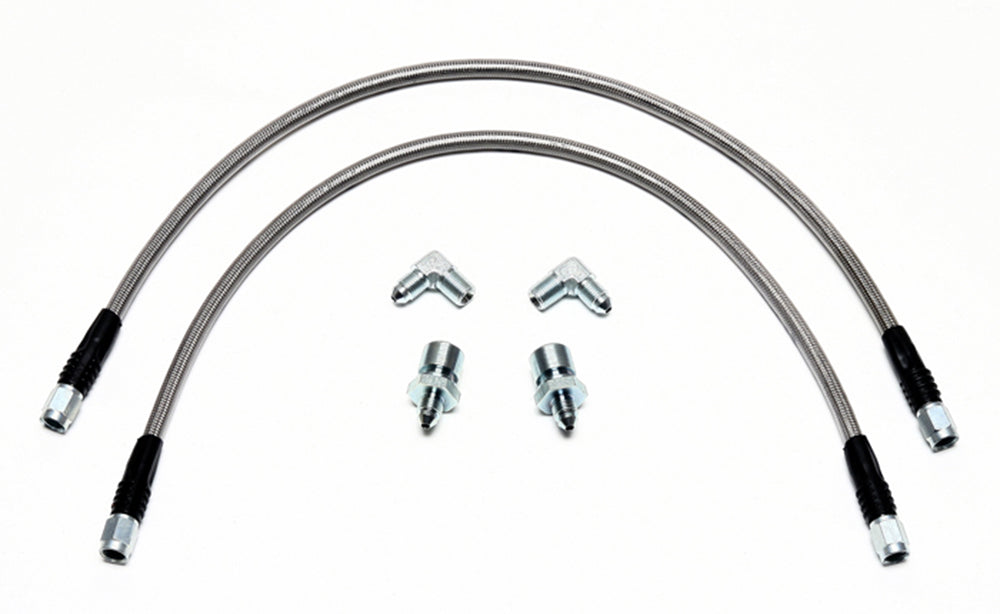

The hose arrangement for this Ford F-150 front conversion uses two 20-inch lines and 3/8-24 inverted-flare chassis adapters. Wilwood associates it with the 16-inch rotor package, so rotor-package selection matters as much as the truck identification. Wilwood Engineering designs and manufactures disc brake systems from its base in Camarillo, California. Bill Wood founded the company in 1977; its range now includes calipers, brake rotors, master cylinders, valves, fittings and brake lines for motorsport, street-performance and specialized applications. Component selection must account for the requirements of the complete brake system.
Technical Details
- Manufacturer part number: 220-11238
- Component: Brake flexline and fitting kit
- Hose length (inches): 20.00
- Line or fitting size: -3
- Chassis adapter connection: -3 to 3/8-24 inverted flare
- Hose inlet connection: -3 Female
- Hose inlet angle: Straight
- Hose outlet connection: -3 Female
- Hose outlet angle: Straight
- Caliper adapter angle: 90 Degree
- Caliper connection: 1/8-27 NPT
- Caliper adapter reference: 220-13125
- Chassis adapter reference: 220-13124
- Hose quantity: 2
- Listed weight: 1.000 lb
Fitment & Compatibility
The manufacturer describes a 2007-onward F-150 application. Treat that as a kit reference rather than approval for every subsequent generation, and confirm the brake-kit instructions and suspension routing.
