Product details

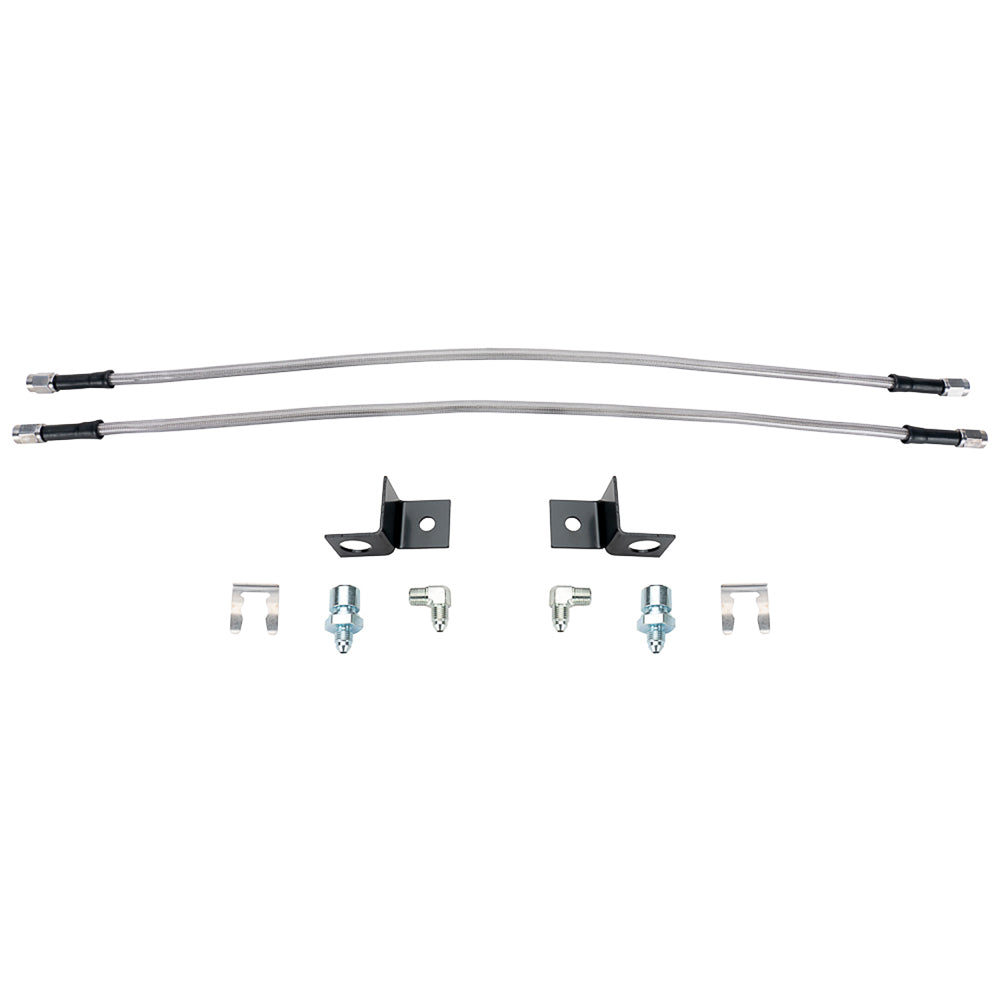

This universal 22-inch hose arrangement connects a domestic inverted-flare chassis interface to separate right-angle caliper adapters. The two -3 braided lines have straight female ends, so hose-end geometry and adapter geometry are separate specifications. Founded by Bill Wood in 1977, Wilwood Engineering is based in Camarillo, California, where it designs and manufactures disc brake systems and components. Its calipers, brake rotors, master cylinders, valves, fittings and brake lines serve motorsport, street-performance and specialized applications, with each component selected to suit the complete brake system.
Technical Details
- Manufacturer part number: 220-11237
- Component: Brake flexline and fitting kit
- Hose length (inches): 22.00
- Line or fitting size: -3
- Chassis adapter connection: -3 to 3/8-24 inverted flare
- Hose inlet connection: -3 Female
- Hose inlet angle: Straight
- Hose outlet connection: -3 Female
- Hose outlet angle: Straight
- Caliper adapter angle: 90 Degree
- Caliper connection: 1/8-27 NPT
- Caliper adapter reference: 220-13125
- Chassis adapter reference: 220-13124
- Chassis retaining clip reference: 300-15780
- Hose quantity: 2
- Listed weight: 1.000 lb
Fitment & Compatibility
Select by required length, 3/8-24 inverted-flare seat and 1/8-27 NPT caliper port. Universal denotes a connection-based installation; check movement and attachment points on the actual vehicle.
