Product details

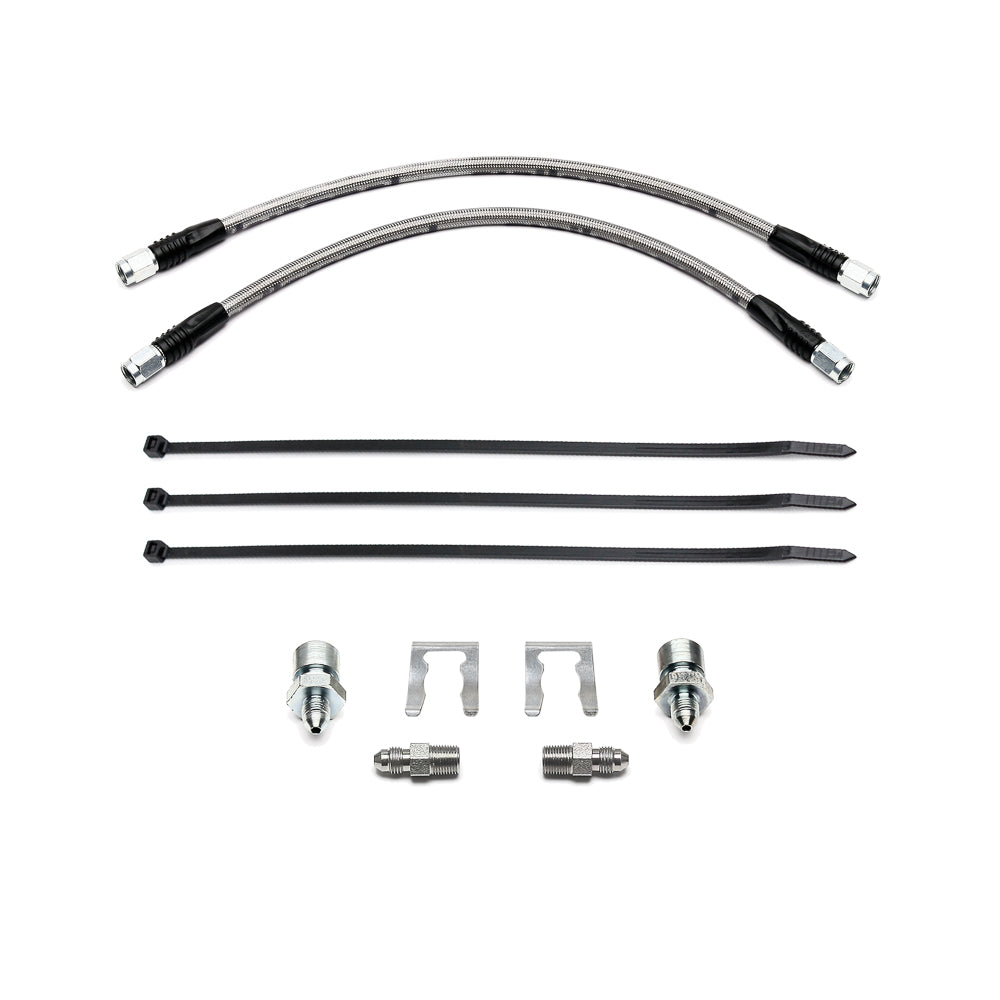

This 12-inch pair is listed for the rear 14.25-inch rotor conversion on 2007-onward GM 1500 vehicles. Its chassis interface is metric inverted flare, but Wilwood's caliper-fitting references are inconsistent and need to be checked against the installation's parts list. Wilwood Engineering is a Camarillo, California manufacturer founded by Bill Wood in 1977. Disc brake design and manufacturing extend across calipers, brake rotors, master cylinders, valves, fittings and brake lines. Parts for street-performance, specialized applications and motorsport must be selected to meet the requirements of the complete brake system.
Technical Details
- Manufacturer part number: 220-11196
- Component: Brake flexline and fitting kit
- Hose length (inches): 12.00
- Line or fitting size: -3
- Chassis adapter connection: -3 to M10 x 1 inverted flare
- Hose inlet connection: M10 inverted flare Female
- Hose inlet angle: Straight
- Hose outlet connection: -3 Female
- Hose outlet angle: Straight
- Chassis retaining clip reference: 300-15780
- Hose quantity: 2
- Listed weight: 0.800 lb
Fitment & Compatibility
Confirm the exact GM 1500 conversion before ordering. The kit notes call out a 90-degree NPT caliper connection, while the fitting table says straight and identifies a metric chassis adapter in the caliper-fitting field; that conflict must be resolved for the actual installation.
Manufacturer Documents
If the brake system has been modified, contact PMB Performance with the installed component references and routing dimensions. We have more than 20 years of experience helping match brake parts to their applications.
