Product details

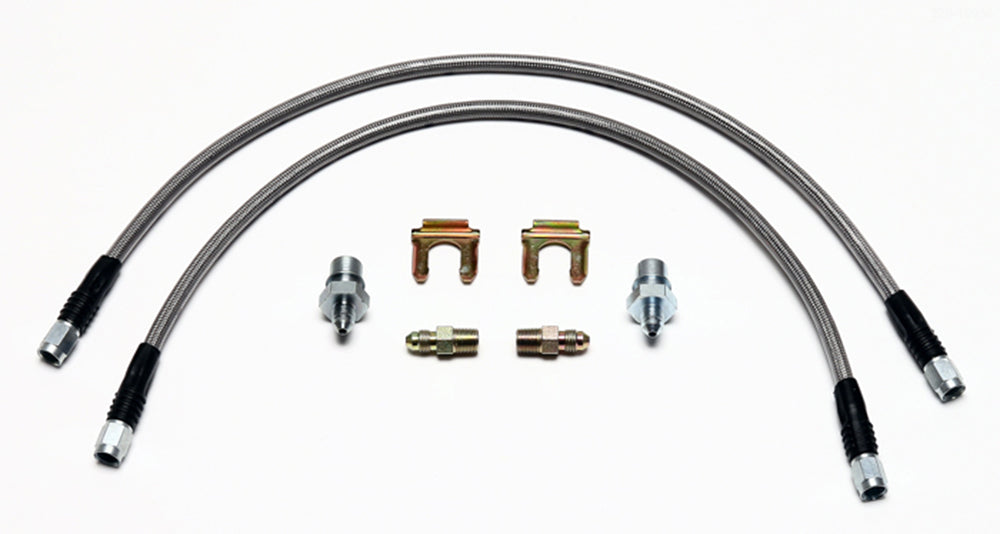

Straight hose ends and straight caliper adapters define this 20-inch rear hydraulic line arrangement. The M10 x 1 bubble-flare chassis adapters connect to -3 hose ends, while the caliper side uses 1/8-27 NPT. Bill Wood founded Wilwood Engineering in 1977, and the manufacturer is based in Camarillo, California. Wilwood designs and manufactures disc brake systems alongside calipers, master cylinders, rotors, fittings, brake lines and valves. The motorsport, street-performance and specialized ranges depend on components selected to work within a complete braking system.
Technical Details
- Manufacturer part number: 220-10988
- Component: Brake flexline and fitting kit
- Hose length (inches): 20.00
- Line or fitting size: -3
- Chassis adapter connection: -3 to M10 x 1 bubble flare
- Hose inlet connection: -3 Female
- Hose inlet angle: Straight
- Hose outlet connection: -3 Female
- Hose outlet angle: Straight
- Caliper adapter angle: Straight
- Caliper connection: 1/8-27 NPT
- Caliper adapter reference: 220-6956
- Chassis adapter reference: 220-6890
- Chassis retaining clip reference: 300-15780
- Hose quantity: 2
- Listed weight: 1.000 lb
Fitment & Compatibility
Wilwood lists a universal brake-line application and identifies a Cobra rear arrangement in the kit notes. Select by those hydraulic interfaces and the installation's actual route; no specific Cobra model year is established here.
Manufacturer Documents
PMB Performance has over 20 years of experience with brake components and fitment. Send the vehicle details, installed brake kit and connection measurements if you need help choosing the correct plumbing.
