Product details

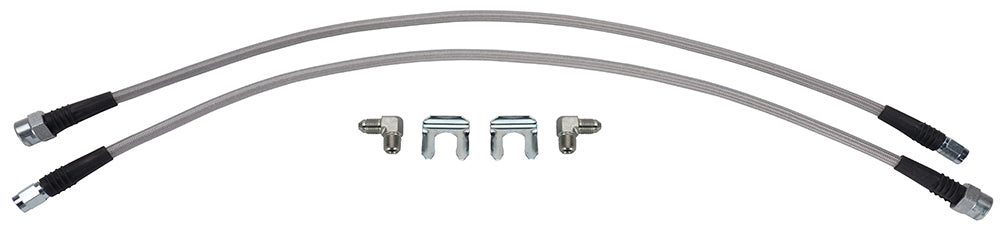

An integrated M12 inverted-flare inlet is used on each of these 24-inch front hoses for GM 1500 truck and SUV conversions. The current kit notes identify the Wilwood 14.25-inch rotor package, which must be matched independently of the truck's series name. Since its founding by Bill Wood in 1977, Wilwood Engineering has focused on disc brake system design and manufacturing. Based in Camarillo, California, it offers calipers, rotors, brake lines, master cylinders, fittings and valves for motorsport, street-performance and specialized installations. Choose components to satisfy the requirements of the entire braking system.
Technical Details
- Manufacturer part number: 220-10979
- Component: Brake flexline and fitting kit
- Hose length (inches): 24.00
- Line or fitting size: -3
- Hose inlet connection: M12 inverted flare Female
- Hose inlet angle: Straight
- Hose outlet connection: -3 Female
- Hose outlet angle: Straight
- Caliper adapter angle: 90 Degree
- Caliper connection: 1/8-27 NPT
- Caliper adapter reference: 220-13125
- Chassis retaining clip reference: 300-15780
- Hose quantity: 2
- Listed weight: 1.000 lb
Fitment & Compatibility
Wilwood's application heading lists 2007–2018 GM 1500 vehicles, while the kit notes extend to 2019. Confirm the precise model and year with the brake-kit instructions; do not assume a 2500 application from a general GM truck description.
Manufacturer Documents
For a fitment check, give PMB Performance the vehicle year, brake configuration and details of both mating connections. Our team brings more than 20 years of parts and brake-system experience to the comparison.
