Product details

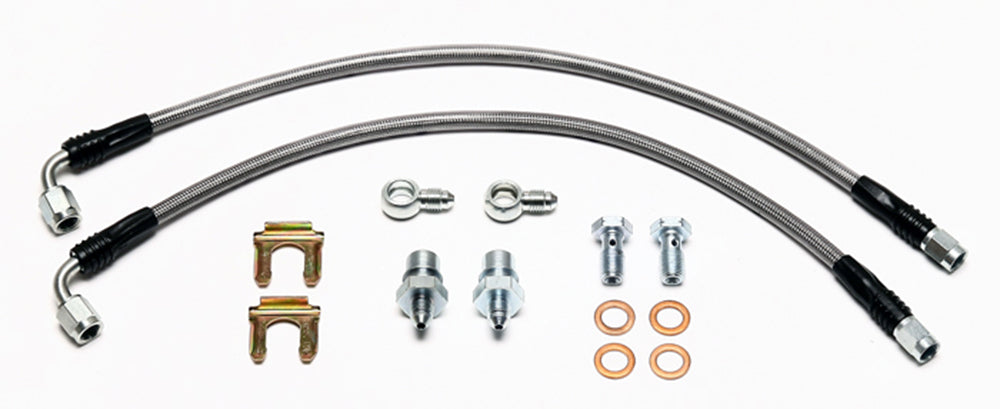

These rear Mini Cooper conversion hoses place the 90-degree hose end at the chassis side and a straight end toward the CPB caliper adapter. The 16-inch pair connects through metric bubble-flare and 10 mm banjo hardware. Wilwood Engineering designs and builds disc brake systems in Camarillo, California. Bill Wood established the company in 1977; it supplies brake rotors, calipers, master cylinders, valves, fittings and lines for specialized applications, street performance and motorsport. The complete brake system determines which individual components are appropriate.
Technical Details
- Manufacturer part number: 220-10879
- Component: Brake flexline and fitting kit
- Hose length (inches): 16.00
- Line or fitting size: -3
- Chassis adapter connection: -3 to M10 x 1 bubble flare
- Hose inlet connection: -3 Female
- Hose inlet angle: 90 Degree
- Hose outlet connection: -3 Female
- Hose outlet angle: Straight
- Caliper adapter angle: Banjo, 0 degrees
- Caliper connection: 10mm Banjo
- Caliper adapter reference: 220-10416
- Chassis adapter reference: 220-6890
- Chassis retaining clip reference: 300-15780
- Hose quantity: 2
- Listed weight: 0.800 lb
Fitment & Compatibility
Select for the Wilwood Mini Cooper CPB rear installation, with generation and bracket arrangement checked against its instructions. A model name alone does not establish fitment on a factory rear brake assembly.
Manufacturer Documents
PMB Performance can help compare the fitting arrangement with your brake system, drawing on over 20 years of experience. Include the vehicle details and clear views of the mating hardware.
