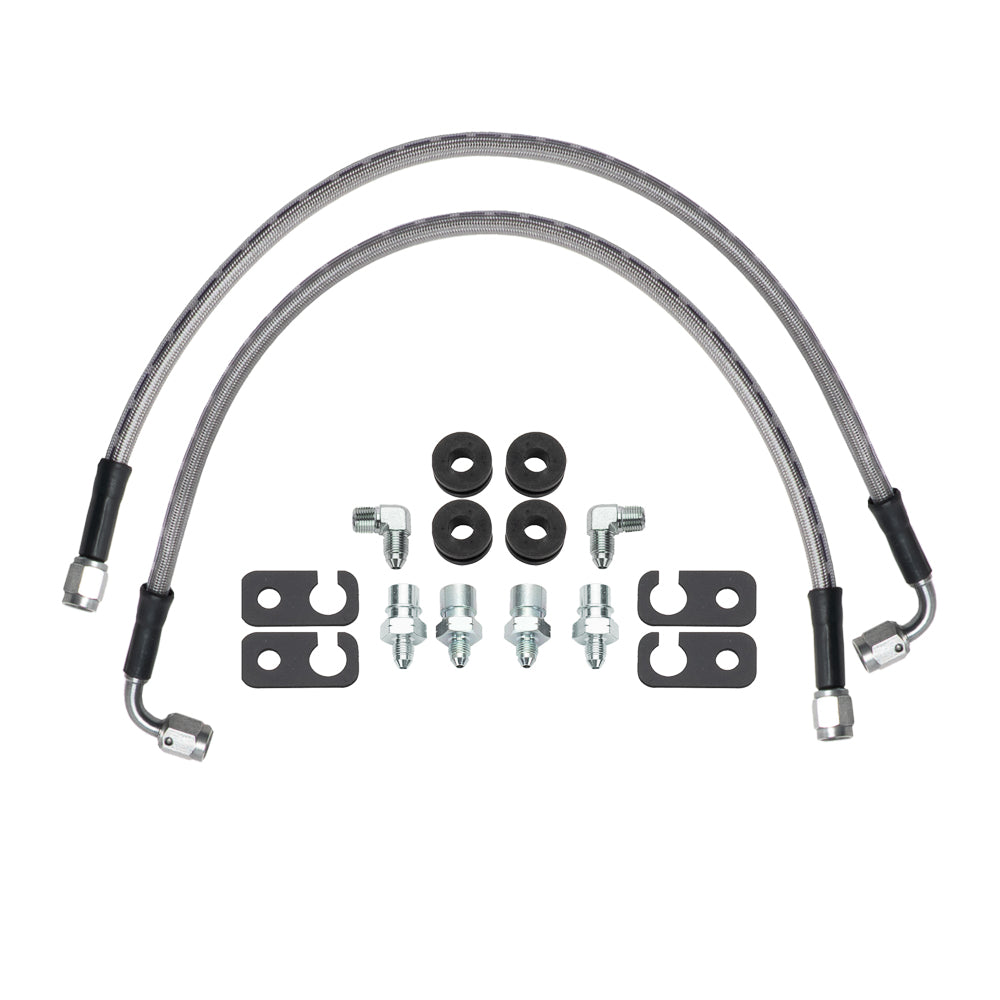

The front Superlite 6 installation on the Honda S2000 uses two 18-inch hoses with angled outlet ends. Wilwood lists both M10 x 1 inverted-flare and bubble-flare chassis adapter options, making the existing flare seat an essential selection detail. Founded in 1977 under Bill Wood, Wilwood Engineering operates from Camarillo, California. The company designs and manufactures disc braking systems and components, including calipers, master cylinders, brake rotors, fittings, valves and brake lines. Its motorsport, specialized and street-performance range requires individual parts matched to the complete braking arrangement.
Technical Details
- Manufacturer part number: 220-10841
- Component: Brake flexline and fitting kit
- Hose length (inches): 18.00
- Line or fitting size: -3
- Chassis adapter connection: M10 x 1 inverted flare or M10 x 1 bubble flare
- Hose inlet connection: -3 Female
- Hose inlet angle: Straight
- Hose outlet connection: -3 Female
- Hose outlet angle: 90 Degree
- Caliper adapter angle: 90 Degree
- Caliper connection: 1/8-27 NPT
- Caliper adapter reference: 220-13125
- Chassis adapter reference: 220-6413 / 220-6890
- Line support reference: 250-8361
- Hose quantity: 2
- Listed weight: 0.800 lb
Fitment & Compatibility
Current kit notes identify 2000–2009 S2000 Superlite 6 conversions. Confirm which chassis adapter belongs to the car and retain the mounting arrangement required by that specific brake kit.
