Product details

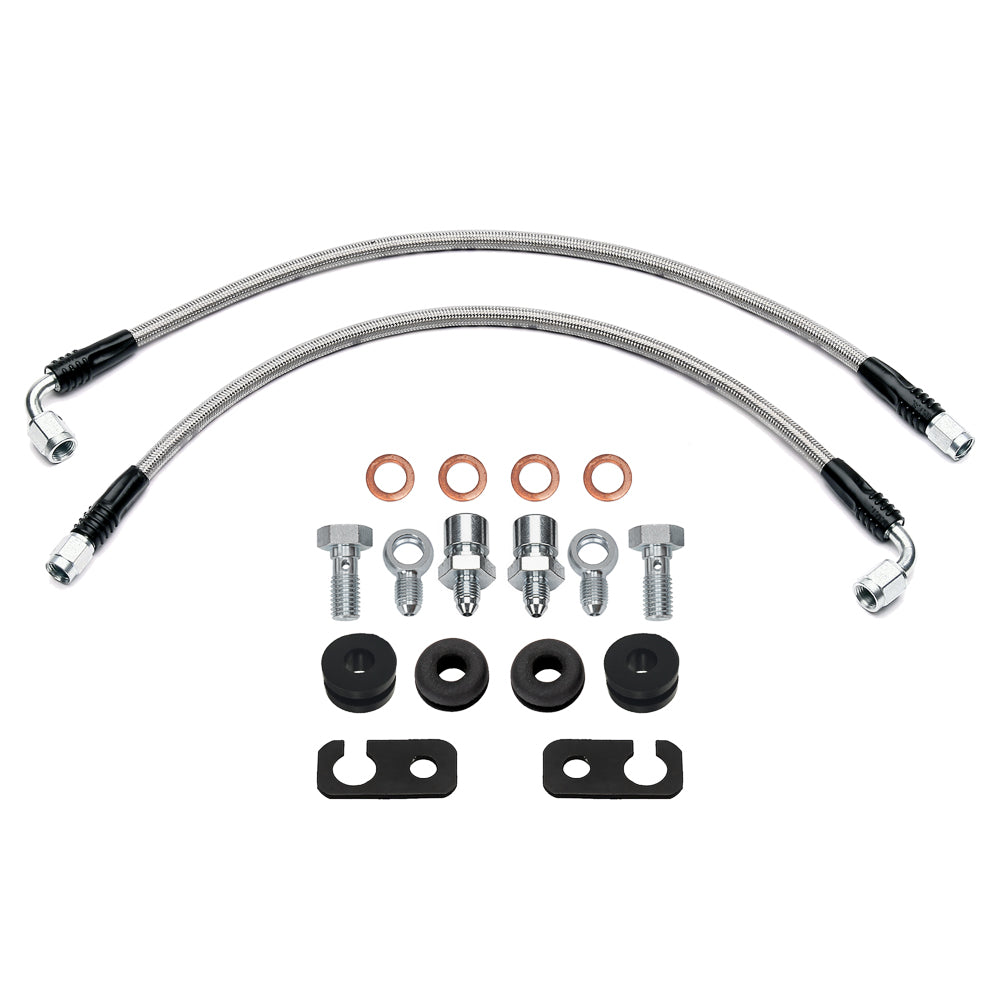

This rear conversion kit joins Honda or Acura chassis plumbing to Wilwood CPB calipers through metric inverted-flare adapters and 10 mm banjo fittings. It includes a two-hose arrangement with bracket hardware, while the published length references require confirmation. Wilwood Engineering’s work covers the design and manufacture of disc brake systems for motorsport, street-performance and specialized applications. Bill Wood founded the company in 1977 in a business now based in Camarillo, California. Its calipers, master cylinders, brake rotors, brake lines, valves and fittings must be selected around the complete system.
Technical Details
- Manufacturer part number: 220-10840
- Component: Brake flexline and fitting kit
- Line or fitting size: -3
- Chassis adapter connection: -3 to M10 x 1 inverted flare
- Hose inlet connection: -3 Female
- Hose inlet angle: Straight
- Hose outlet connection: -3 Female
- Hose outlet angle: 90 Degree
- Caliper adapter angle: Banjo, 0 degrees
- Caliper connection: 10mm Banjo
- Caliper adapter reference: 220-10416
- Chassis adapter reference: 220-6413
- Line support reference: 250-8361
- Hose quantity: 2
- Listed weight: 0.800 lb
- Length discrepancy: Manufacturer detail and kit note differ; see compatibility section
Fitment & Compatibility
Use the actual CPB conversion's parts list to identify the vehicle and hose routing. Wilwood's size field specifies 16 inches, but its kit notes call out 18 inches; confirm the required assembly length before purchase.
Manufacturer Documents
With more than 20 years of experience, PMB Performance can assist with brake-component selection. Provide the vehicle and installed brake details so the connection and mounting requirements can be checked together.
