Product details

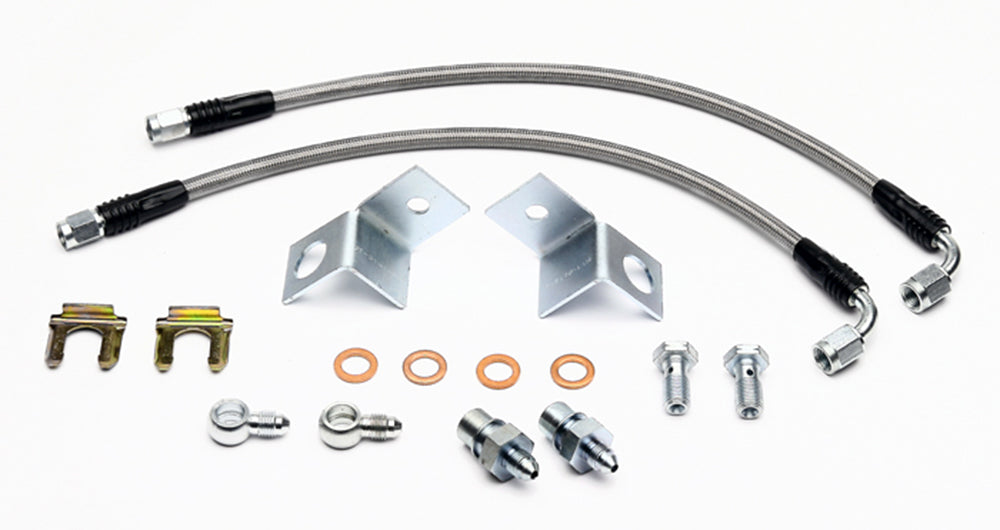

The CPB rear-brake conversion on the listed Ford Mustang uses a banjo connection at the caliper and a metric bubble-flare chassis interface. This kit supplies two 14-inch braided hoses together with the matching adapter and bracket arrangement identified by Wilwood. From Camarillo, California, Wilwood Engineering designs and manufactures disc brake systems and their components. Founded by Bill Wood in 1977, it serves street-performance, motorsport and specialized applications with master cylinders, calipers, brake rotors, valves, fittings and brake lines. All components must suit the requirements of the complete system.
Technical Details
- Manufacturer part number: 220-10417
- Component: Brake flexline and fitting kit
- Hose length (inches): 14.00
- Line or fitting size: -3
- Chassis adapter connection: -3 to M10 x 1 bubble flare
- Hose inlet connection: -3 Female
- Hose inlet angle: Straight
- Hose outlet connection: -3 Female
- Hose outlet angle: 90 Degree
- Caliper adapter angle: Banjo, 0 degrees
- Caliper connection: 10mm Banjo
- Caliper adapter reference: 220-10416
- Chassis adapter reference: 220-6890
- Chassis retaining clip reference: 300-15780
- Line support reference: 250-9140 / 250-9141
- Hose quantity: 2
- Listed weight: 1.000 lb
Fitment & Compatibility
For the 2005–2010 Mustang CPB installation named in Wilwood's current kit notes. Confirm the installed CPB brake kit and mounting brackets; these connections do not establish compatibility with a factory rear caliper.
Manufacturer Documents
PMB Performance can help compare the fitting arrangement with your brake system, drawing on over 20 years of experience. Include the vehicle details and clear views of the mating hardware.
