Product details

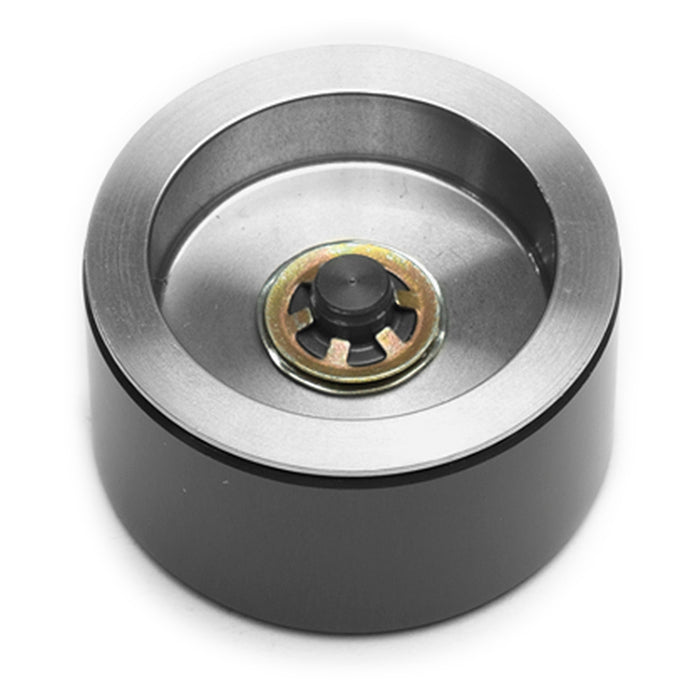

This short Thermlock places a stainless thermal shield within a coated aluminum piston measuring 1.62 inches in diameter and 0.880 inch long. It allows the specified caliper to retain its original short-piston geometry while using Wilwood's thermal-barrier design. Founded by Bill Wood in 1977, Wilwood Engineering designs and manufactures disc brake systems in Camarillo, California. Its calipers, rotors, master cylinders, valves, fittings and brake lines serve motorsport, street-performance and specialized applications, with each component selected to suit the complete brake system.
Technical Details
- Manufacturer part number: 200-9615
- Piston outside diameter: 1.62 in
- Piston length: 0.880 in
- Finish: Anodize
- Supplied component: One caliper piston; verify the required seal separately
- Piston construction: Thermlock
- Material: Aluminum shell with stainless steel shield
Fitment & Compatibility
The guide identifies TC6R, BNSL6R, Dynalite and DynaPro applications. Verify the complete caliper and required bore position; the longer 1.62-inch Thermlock is a different service component.
Wilwood product specifications · Thermlock piston application guide
PMB Performance's 20+ years of experience can help with the details that determine fit. Supply the brake assembly number and the dimensions of the parts being replaced.
