Product details

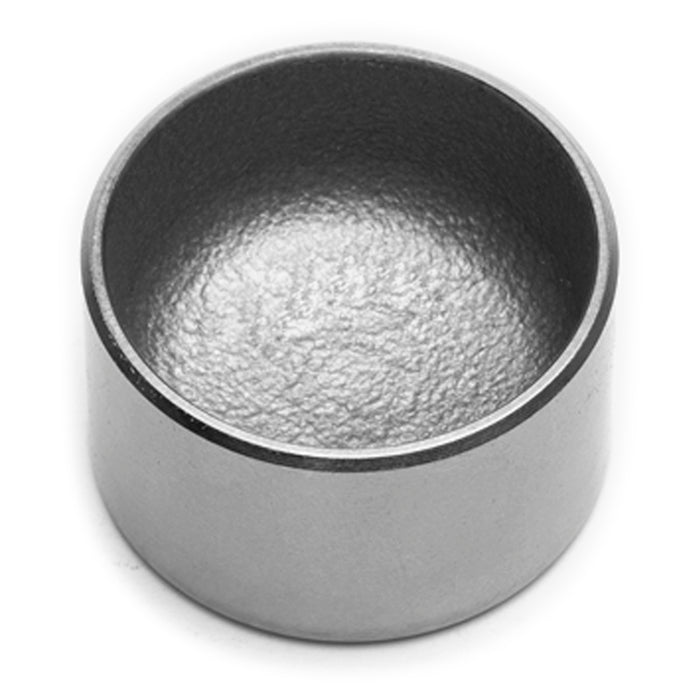

This cast stainless replacement is identified for the 1.38-inch Powerlite piston position. Wilwood's dimension field lists 0.820 inch in length, while the service-price description uses 0.84 inch, so the length needs confirmation for the specific caliper. Bill Wood's founding of Wilwood Engineering in 1977 established the Camarillo, California company behind this component. Wilwood designs and manufactures disc brake systems, from calipers and rotors to master cylinders, valves, fittings and brake lines, serving motorsport, street-performance and specialized applications where each part must satisfy the complete system's requirements.
Technical Details
- Manufacturer part number: 200-8698
- Piston outside diameter: 1.38 in
- Finish: Plain
- Supplied component: One caliper piston; verify the required seal separately
- Piston construction: Cast
- Material: Stainless steel
- Length requires confirmation: exact field 0.820 inch; service catalog 0.84 inch.
Fitment & Compatibility
Match the Powerlite caliper number and piston location, then confirm the actual length with Wilwood before ordering. Do not use the conflicting lengths to assume extra piston travel or clearance.
Wilwood product specifications
Bring the original assembly number and relevant measurements to PMB Performance for fitment assistance backed by 20+ years of experience.
