Product details

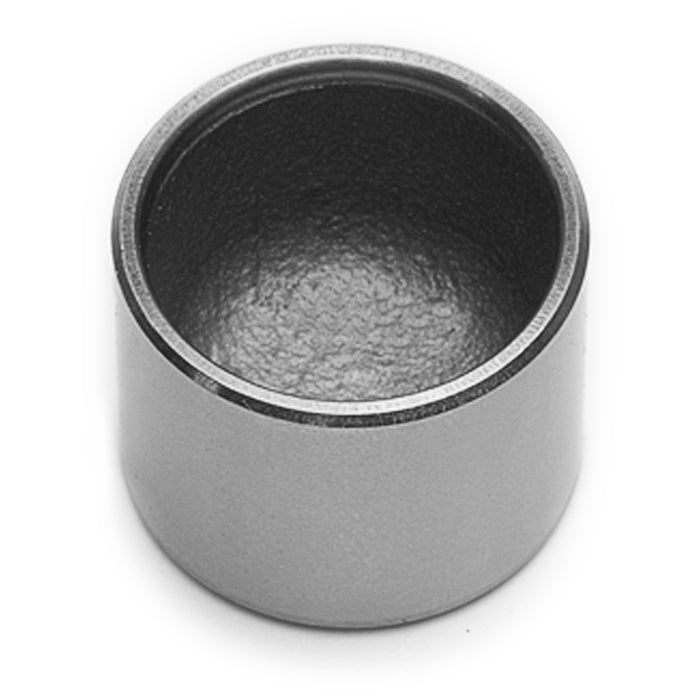

This compact cast stainless piston measures 1.12 inches across and 0.880 inch along its body. The short cup is a hydraulic service component, so its depth must suit the installed caliper and pad arrangement. A designer and manufacturer of disc brake systems, Wilwood Engineering was founded in 1977 by Bill Wood and is based in Camarillo, California. Its work covers street-performance, motorsport and specialized applications, with a product range of calipers, rotors, master cylinders, valves, fittings and brake lines selected to function within a complete brake system.
Technical Details
- Manufacturer part number: 200-8439
- Piston construction: Cast
- Material: Stainless steel
- Piston outside diameter: 1.12 in
- Piston length: 0.880 in
- Finish: Plain
- Supplied component: One caliper piston; verify the required seal separately
Fitment & Compatibility
Verify the piston against the exact caliper service listing and check the bore before reassembly. The replacement must retain the original diameter and construction at that piston location.
