Product details

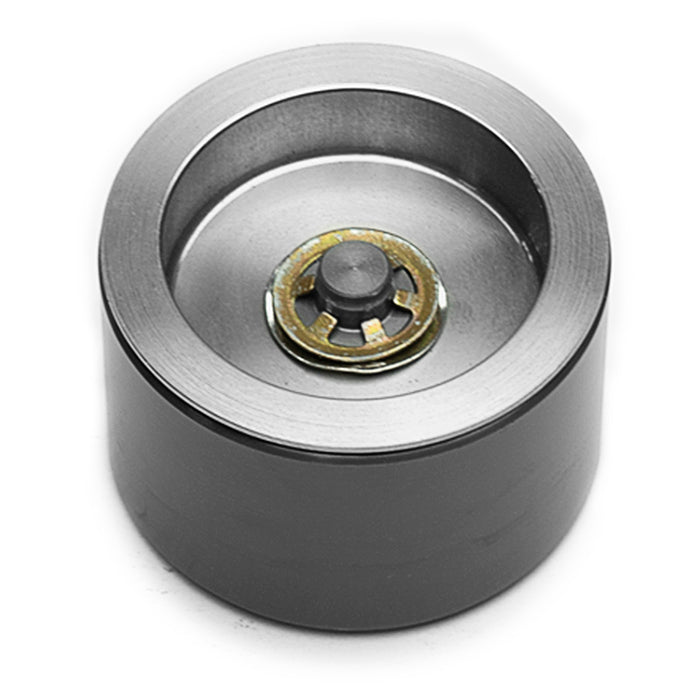

This 1.62-inch Thermlock is the 1.050-inch-long version for selected Wilwood racing calipers. The separate stainless shield reduces the direct heat path through its coated aluminum piston shell. This component comes from Wilwood Engineering's disc brake program, designed and manufactured for motorsport, street-performance and specialized applications. Bill Wood established the company in 1977; it is based in Camarillo, California. The range spans calipers, rotors, master cylinders, valves, fittings and brake lines, whose selection depends on the requirements of the complete braking system.
Technical Details
- Manufacturer part number: 200-7553
- Piston outside diameter: 1.62 in
- Piston length: 1.050 in
- Finish: Anodize
- Supplied component: One caliper piston; verify the required seal separately
- Piston construction: Thermlock
- Material: Aluminum shell with stainless steel shield
Fitment & Compatibility
Applications in the Thermlock guide include XT6R, Aerolite 6/4R, Superlite, NDL and NDP. Check the exact assembly and individual piston position; these calipers may use several piston diameters.
Wilwood product specifications · Thermlock piston application guide
For help matching the service part to your brake assembly, contact PMB Performance with its identification and dimensions. Our team draws on over 20 years of experience.
