Product details

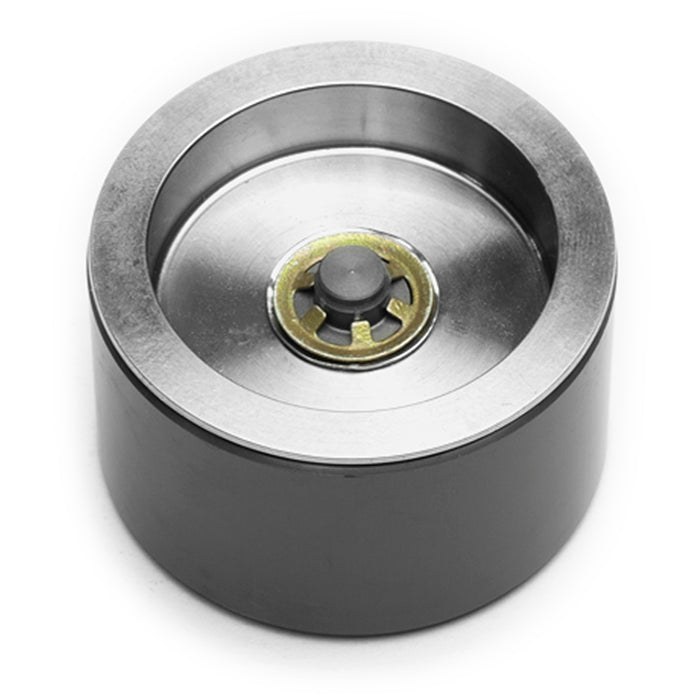

The 1.75-by-1.050-inch Thermlock combines an aluminum shell with a stainless heat shield for sustained-temperature brake service. Its multi-part construction is intended to reduce heat reaching the hydraulic components through the piston. Since Bill Wood founded Wilwood Engineering in 1977, the company has designed and manufactured disc brake systems and components. Based in Camarillo, California, it supplies calipers, rotors, master cylinders, valves, fittings and brake lines for motorsport, specialized and street-performance applications; the complete system's requirements remain central to choosing an individual part.
Technical Details
- Manufacturer part number: 200-7551
- Piston construction: Thermlock
- Material: Aluminum shell with stainless steel shield
- Piston outside diameter: 1.75 in
- Piston length: 1.050 in
- Finish: Anodize
- Supplied component: One caliper piston; verify the required seal separately
Fitment & Compatibility
The Thermlock guide identifies XT6R, Aerolite 6/4R, SL, NDL, NDP, GN III and GN6R calipers for this size. Verify the individual caliper's service specification, including piston location and pad configuration.
Wilwood product specifications · Thermlock piston application guide
