Product details

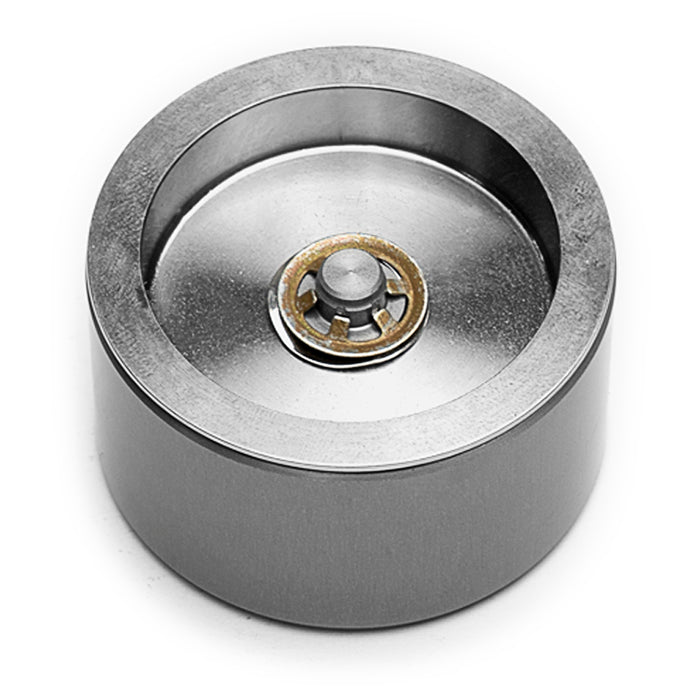

This 1.88-inch Thermlock piston uses a stainless shield and coated aluminum shell to interrupt heat flow from the pad toward the caliper fluid. At 1.050 inches long, it serves the Aerolite and Superlite configurations identified in Wilwood's Thermlock guide. Established by Bill Wood in 1977, Wilwood Engineering designs and manufactures its disc brake systems and components from Camarillo, California. The product range brings together brake lines, fittings, valves, calipers, rotors and master cylinders for specialized applications, motorsport and street performance, with every service component matched to the system as a whole.
Technical Details
- Manufacturer part number: 200-7550
- Piston outside diameter: 1.88 in
- Piston length: 1.050 in
- Finish: Anodize
- Supplied component: One caliper piston; verify the required seal separately
- Piston construction: Thermlock
- Material: Aluminum shell with stainless steel shield
Fitment & Compatibility
Wilwood lists Aerolite 6/4R and Superlite applications for this size. Confirm the exact caliper model and bore position before installation; the family name does not establish that every piston in the caliper uses this diameter.
Wilwood product specifications · Thermlock piston application guide
PMB Performance brings more than 20 years of brake-system experience to parts selection. Share the assembly identification and measurements if you need help confirming this component.
