Product details

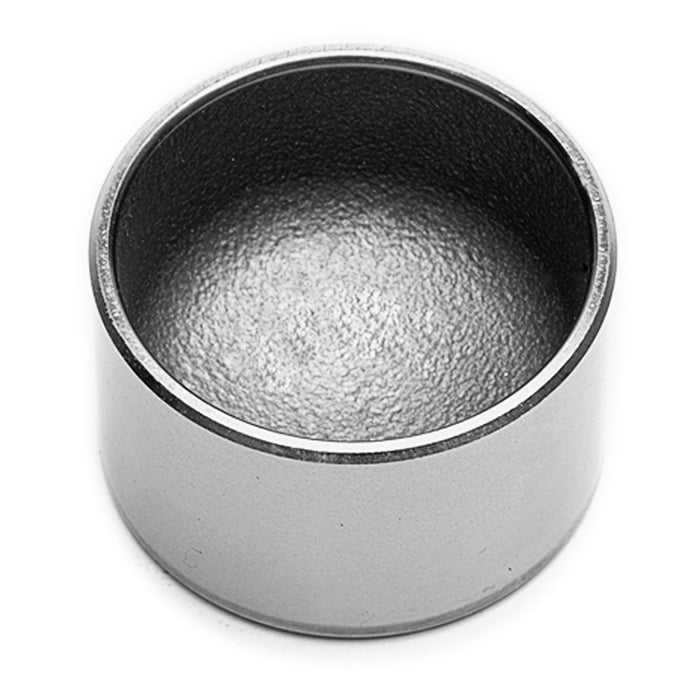

The longer 1.080-inch body is the defining feature of this 1.75-inch cast stainless piston. It must be matched to the intended Wilwood caliper depth so the piston, seal and pad retain their designed working relationship. Camarillo, California is home to Wilwood Engineering, the disc brake manufacturer Bill Wood founded in 1977. Wilwood designs and manufactures systems and components including calipers, rotors, master cylinders, valves, fittings and brake lines. Its motorsport, street-performance and specialized applications require parts selected for the complete brake system's demands.
Technical Details
- Manufacturer part number: 200-7532
- Supplied component: One caliper piston; verify the required seal separately
- Piston construction: Cast
- Material: Stainless steel
- Piston outside diameter: 1.75 in
- Piston length: 1.080 in
- Finish: Plain
Fitment & Compatibility
Use the caliper identification to distinguish this component from 0.880-, 1.000- and 1.030-inch pistons of the same diameter. Dimensional similarity is not a substitute for the specified service part.
Wilwood product specifications
PMB Performance's 20+ years of experience can help with the details that determine fit. Supply the brake assembly number and the dimensions of the parts being replaced.
