Product details

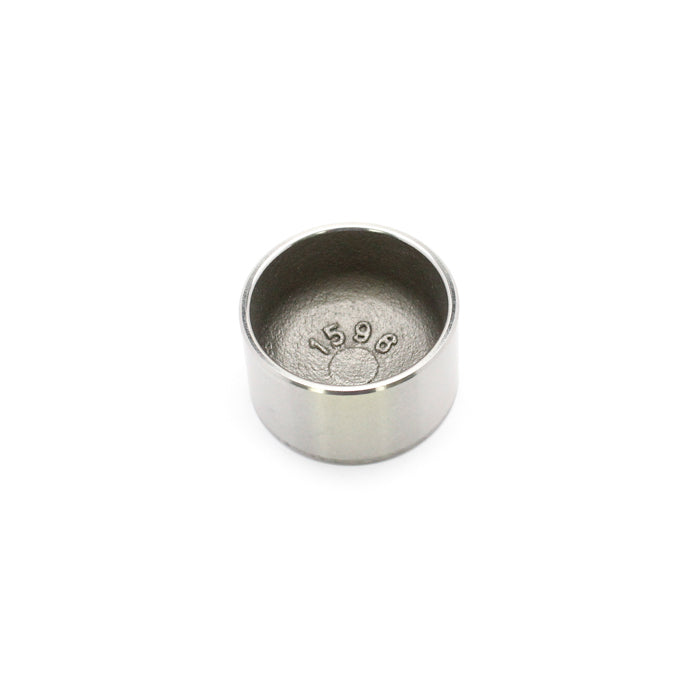

A one-inch body length sets this 1.75-inch Wilwood piston apart within the cast stainless range. Use it to service the matching hydraulic caliper without changing the piston geometry specified for that assembly. The manufacturer is Wilwood Engineering, founded by Bill Wood in 1977 and based in Camarillo, California. Wilwood designs and manufactures disc brake systems and components for street-performance, specialized applications and motorsport. Its master cylinders, calipers, rotors, brake lines, valves and fittings must be chosen to work together within the complete system.
Technical Details
- Manufacturer part number: 200-7530
- Piston outside diameter: 1.75 in
- Piston length: 1.000 in
- Finish: Plain
- Supplied component: One caliper piston; verify the required seal separately
- Piston construction: Cast
- Material: Stainless steel
Fitment & Compatibility
Check the caliper identification and the old piston's dimensions together. Inspect the seal groove and bore for serviceability, and obtain the correct seals separately where required.
Wilwood product specifications
Use PMB Performance's more than 20 years of parts experience to confirm the assembly details before ordering; the original component number and measurements are useful starting points.
