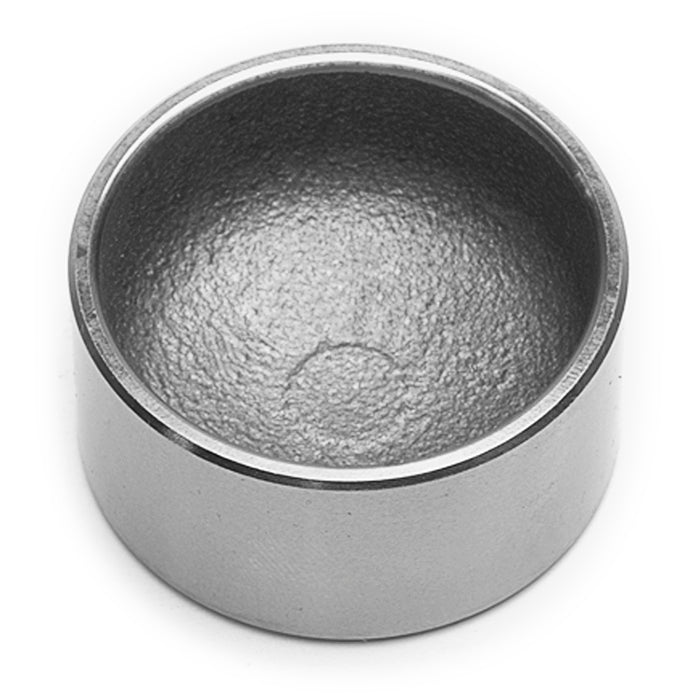

Wilwood 0.880-Inch Short Caliper Piston, 1.75-Inch Cast Stainless

For a caliper requiring a short 1.75-inch piston, this cast stainless version provides a 0.880-inch body length. The machined exterior works within the specified bore while the open cup faces the brake pad. Wilwood Engineering's disc brake range encompasses calipers, rotors, master cylinders, valves, fittings and brake lines. Founded in 1977 by Bill Wood, the Camarillo, California company designs and manufactures these systems and components for motorsport, street-performance and specialized applications, treating each part as a selection within a complete brake system.

Technical Details

• Manufacturer part number: 200-7528
• Supplied component: One caliper piston; verify the required seal separately
• Piston construction: Cast
• Material: Stainless steel
• Piston outside diameter: 1.75 in
• Piston length: 0.880 in
• Finish: Plain

Fitment & Compatibility

Compare the piston dimensions with the caliper's own parts diagram. This short part is not interchangeable solely because another Wilwood piston has the same 1.75-inch outside diameter.
