Product details

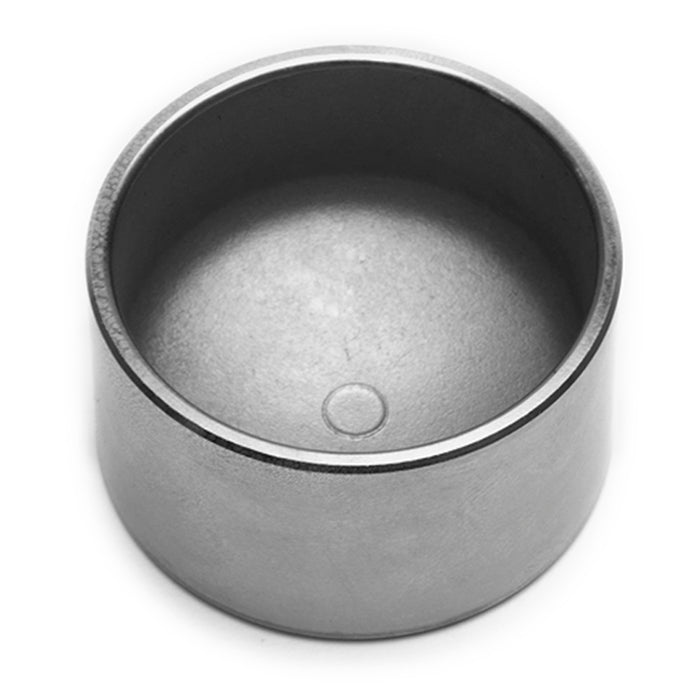

The 1.070-inch length distinguishes this Wilwood piston from shorter components sharing its 1.88-inch diameter. Cast stainless construction supports the cup wall and restricts heat transfer compared with more conductive piston materials. Based in Camarillo, California, Wilwood Engineering has designed and manufactured disc brake systems since Bill Wood founded the company in 1977. Calipers, rotors, master cylinders, fittings, brake lines and valves form its range for motorsport, specialized and street-performance use; individual parts must match the requirements of the complete system.
Technical Details
- Manufacturer part number: 200-7522
- Piston construction: Cast
- Material: Stainless steel
- Piston outside diameter: 1.88 in
- Piston length: 1.070 in
- Finish: Plain
- Supplied component: One caliper piston; verify the required seal separately
Fitment & Compatibility
Verify the service number and installed piston length rather than selecting by bore alone. The correct piston must work with the caliper body, seals and intended brake-pad stack.
