Product details

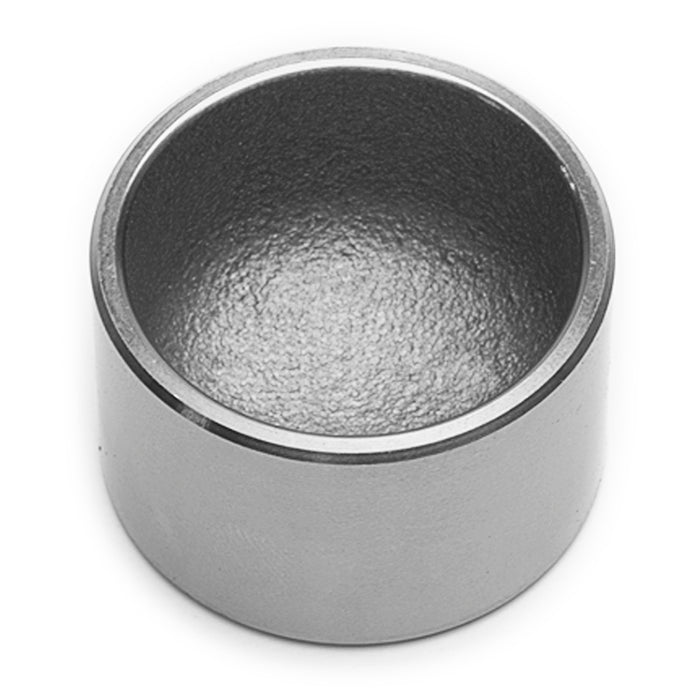

A 1.62-inch outside diameter and 1.030-inch body length identify this cast stainless Wilwood caliper piston. Its rigid cup construction resists deflection while stainless steel limits heat conduction from the pad into the hydraulic assembly. Founded by Bill Wood in 1977, Wilwood Engineering designs and manufactures disc brake systems in Camarillo, California. Its calipers, rotors, master cylinders, valves, fittings and brake lines serve motorsport, street-performance and specialized applications, with each component selected to suit the complete brake system.
Technical Details
- Manufacturer part number: 200-7519
- Piston construction: Cast
- Material: Stainless steel
- Piston outside diameter: 1.62 in
- Piston length: 1.030 in
- Finish: Plain
- Supplied component: One caliper piston; verify the required seal separately
Fitment & Compatibility
Identify the caliper before replacing its piston; matching the diameter alone does not establish the correct length or internal construction. Inspect the bore and specify the separate seal required by that caliper.
Wilwood product specifications
PMB Performance brings more than 20 years of brake-system experience to parts selection. Share the assembly identification and measurements if you need help confirming this component.
