Product details

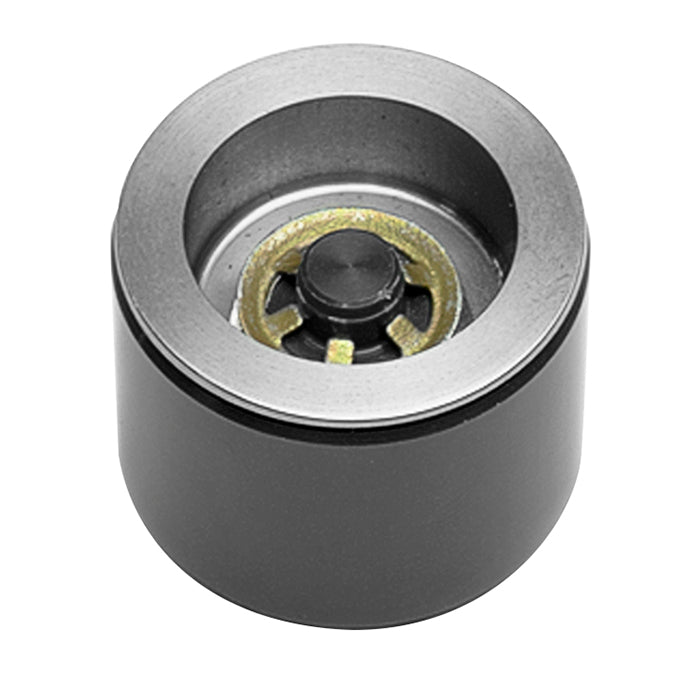

A 0.820-inch length defines this Wilwood Thermlock piston with 1.25-inch outside diameter. Match the caliper, shield design and seal configuration. From Camarillo, California, Wilwood Engineering designs and manufactures disc brake systems and their components. Founded by Bill Wood in 1977, it serves street-performance, motorsport and specialized applications with master cylinders, calipers, brake rotors, valves, fittings and brake lines. All components must suit the requirements of the complete system.
Technical Details
- Manufacturer part number: 200-15449
- Material: Aluminum - Stainless
- Outside diameter: 1.25 inches
- Overall length: 0.820 inches
- Piston construction: Thermlock
Fitment & Compatibility
Use the piston specified for the installed caliper body and hydraulic seal. Check both dimensions and the piston construction; shared nominal bore size does not confirm the required replacement. The Thermlock assembly combines a stainless heat shield with a coated aluminum shell to reduce heat transfer toward the caliper body and fluid. Use the complete specified design rather than substituting by diameter alone.
Manufacturer Reference
Wilwood component specifications and dimensions
With more than 20 years of parts and fitment experience, PMB Performance can help compare the existing brake assembly with the required component.
