Product details

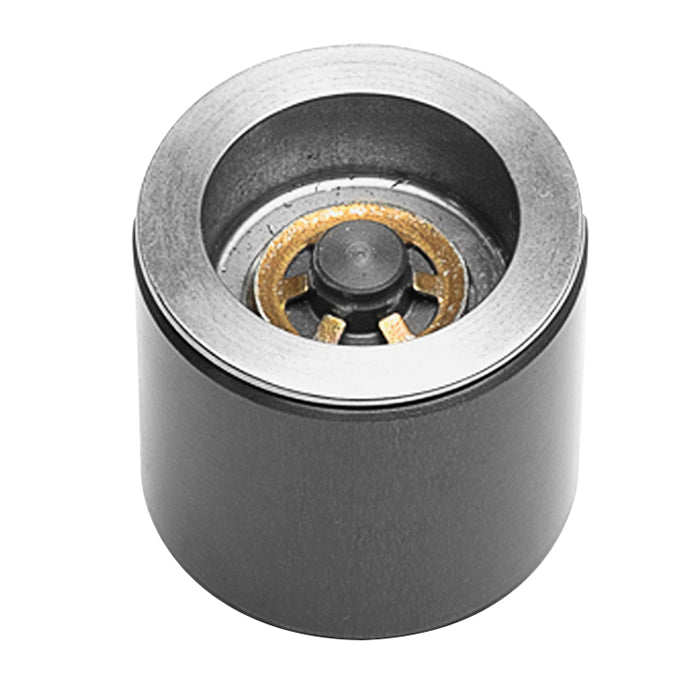

This short Wilwood Thermlock piston uses a stainless heat shield and coated aluminum shell. Match the 1.25-inch outside diameter and 0.880-inch length. Camarillo, California is home to Wilwood Engineering, founded by Bill Wood in 1977. Wilwood designs and manufactures disc brake systems, with calipers, brake rotors, master cylinders, fittings, valves and lines serving motorsport, street-performance and specialized uses. Select individual parts to meet the needs of the complete brake system.
Technical Details
- Manufacturer part number: 200-11343
- Material: Aluminum - Stainless
- Outside diameter: 1.25 inches
- Overall length: 0.880 inches
- Piston construction: Thermlock
Fitment & Compatibility
Use the piston specified for the installed caliper body and hydraulic seal. Check both dimensions and the piston construction; shared nominal bore size does not confirm the required replacement. The Thermlock assembly combines a stainless heat shield with a coated aluminum shell to reduce heat transfer toward the caliper body and fluid. Use the complete specified design rather than substituting by diameter alone.
Manufacturer Reference
Wilwood component specifications and dimensions
Our team at PMB Performance has over 20 years of parts and fitment experience. The existing component number and brake-system details help us check the match.
