Product details

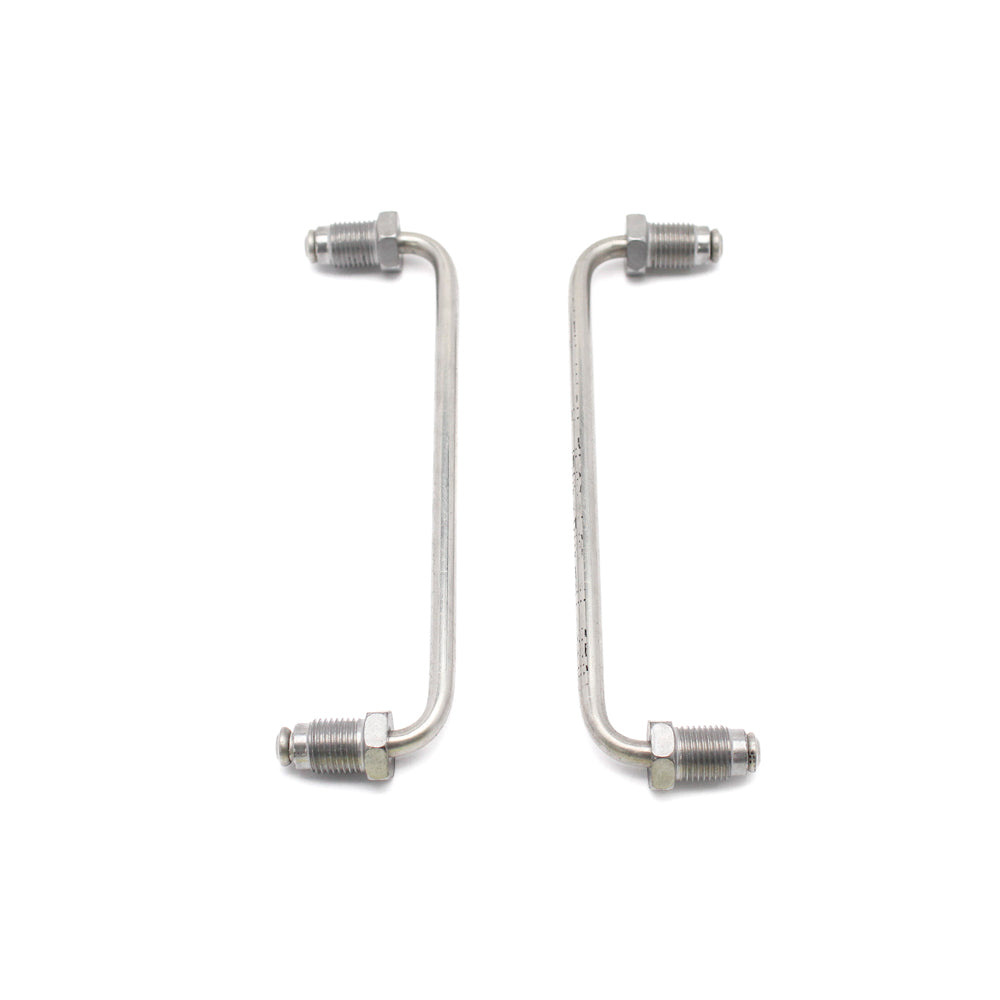

Two stainless Wilwood tubes service a specified TC6R caliper. Confirm its rotor-width version; Wilwood publishes conflicting references. From Camarillo, California, Wilwood Engineering designs and manufactures disc brake systems and their components. Founded by Bill Wood in 1977, it serves street-performance, motorsport and specialized applications with master cylinders, calipers, brake rotors, valves, fittings and brake lines. All components must suit the requirements of the complete system.
Technical Details
- Manufacturer part number: 190-9172
- Material: Stainless steel
- Package: Two tubes
- Manufacturer end-thread designation: M10-1.00 B; verify the fitting seat as well as the thread
- Published tube length reference: 4.48 inches; compare the complete formed-tube geometry
- Component: Rigid caliper hydraulic crossover tube assembly
Fitment & Compatibility
Wilwood’s narrative identifies a TC6R 1.35-inch-rotor caliper, while the ordering description specifies 1.38 inches. Confirm the required TC6R caliper version and matching tube before ordering. This is the hydraulic connection across the specified caliper body. Compare the complete tube route, end threads and sealing seats with the original assembly; it is not a vehicle flexline or a universal tube kit.
Manufacturer Reference
Wilwood component specifications and dimensions
PMB Performance has over 20 years of brake-parts experience. Send the installed component details if you need help checking this replacement.
