Product details
This Wilwood four-tube kit matches the listed narrow Superlite six-piston body for 1.10-inch rotors. Verify the 3.74-inch length and end seats. Wilwood Engineering has designed and manufactured disc brake systems since Bill Wood founded it in 1977. Its Camarillo, California operation supplies calipers, master cylinders, brake rotors, valves, fittings and lines for specialized, street-performance and motorsport applications. Each component must be chosen to match the complete brake system.
Technical Details
- Manufacturer part number: 190-7711
- Published tube length reference: 3.74 inches; compare the complete formed-tube geometry

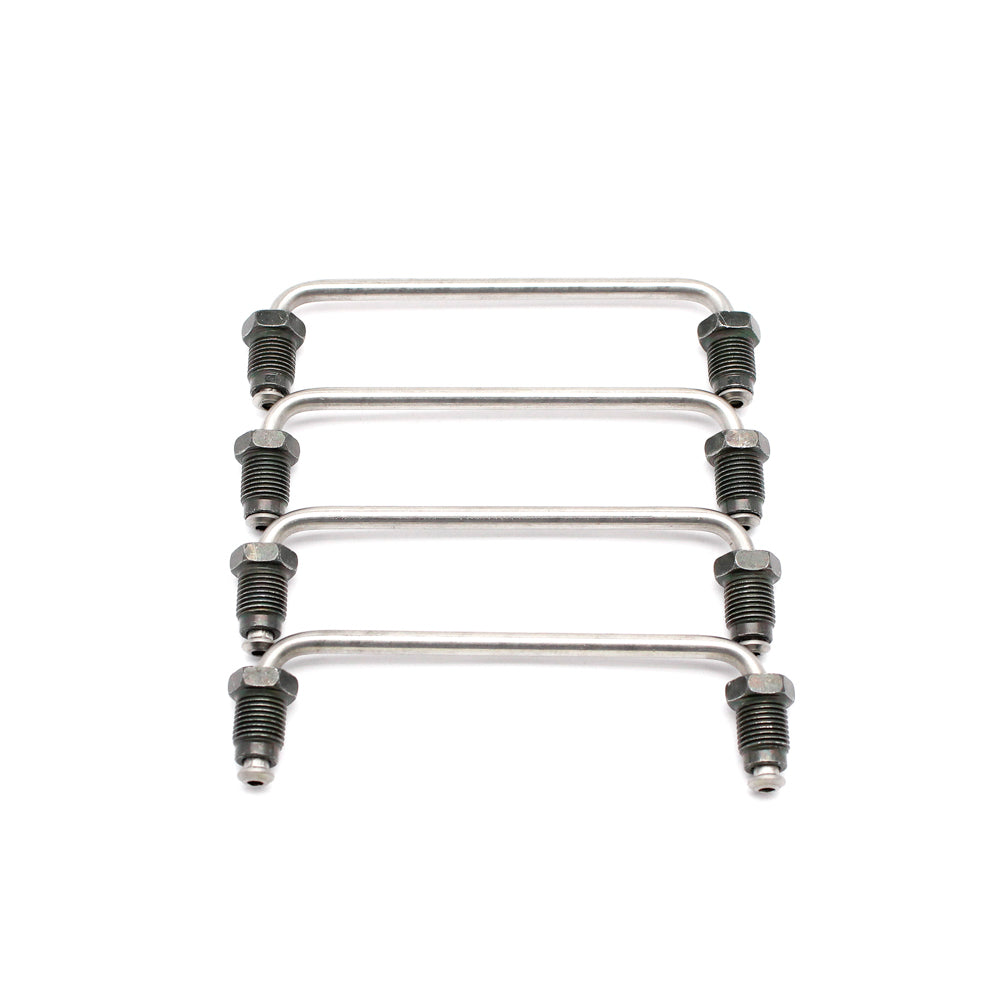

- Component: Rigid caliper hydraulic crossover tube assembly
- Material: Stainless steel
- Package: Four tubes
- Manufacturer end-thread designation: M10-1.00 B; verify the fitting seat as well as the thread
Fitment & Compatibility
Crossover tube assembly for BNSL6 with an 1.10 rotor width. This is the hydraulic connection across the specified caliper body. Compare the complete tube route, end threads and sealing seats with the original assembly; it is not a vehicle flexline or a universal tube kit.
Manufacturer Reference
Wilwood component specifications and dimensions
Ask PMB Performance for help comparing the installation requirements. We have more than 20 years of experience working with brake parts and fitment.
