Product details

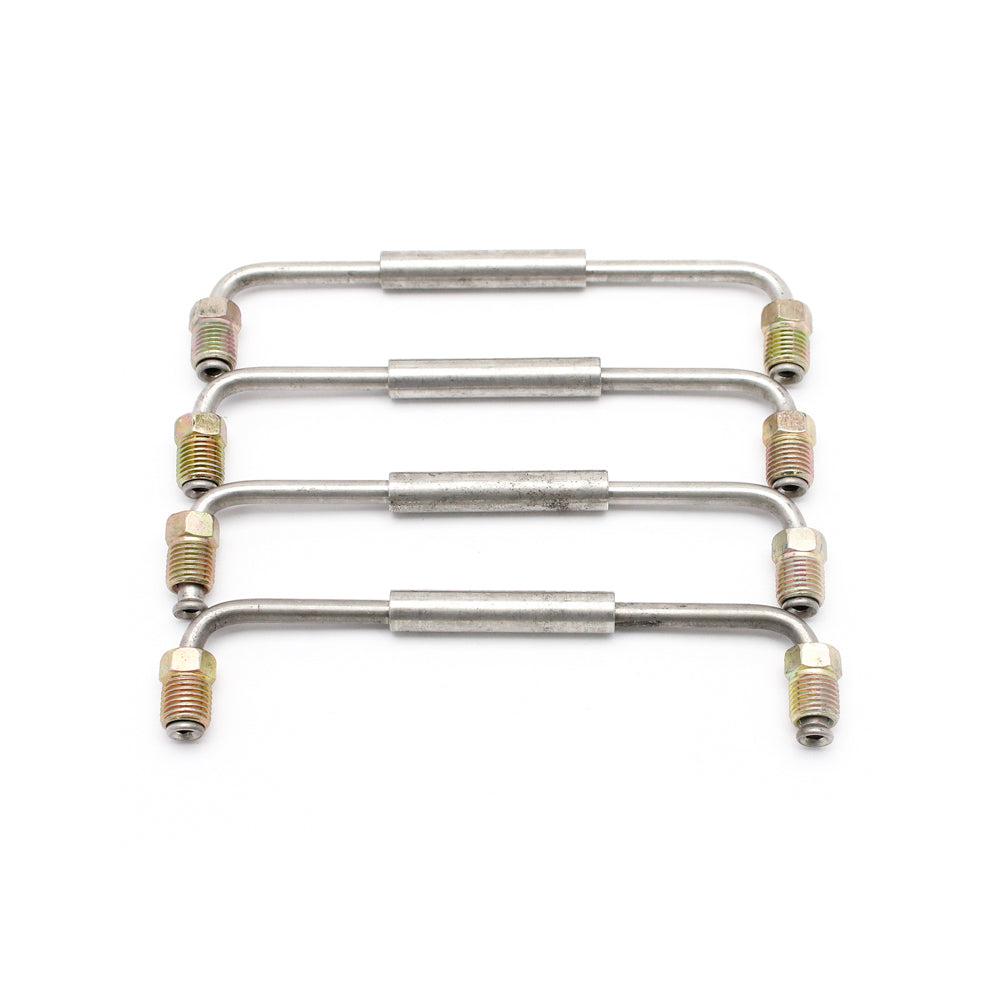

The original open-bridge Billet Superlite six-piston caliper uses this listed Wilwood four-tube set. Match the M10 end threads and tube bends. Founded by Bill Wood in 1977, Wilwood Engineering designs and manufactures disc brake systems from Camarillo, California. Its calipers, brake rotors, master cylinders, valves, fittings and brake lines serve motorsport, street-performance and specialized applications. Individual components must be selected for the complete brake system.
Technical Details
- Manufacturer part number: 190-5106
- Material: Stainless steel
- Package: Four tubes
- Manufacturer end-thread designation: M10-1.00 B; verify the fitting seat as well as the thread
- Published tube length reference: 4.67 inches; compare the complete formed-tube geometry
- Component: Rigid caliper hydraulic crossover tube assembly
Fitment & Compatibility
Crossover tube assembly for the original open bridge BSL6 calipers with an 1.25 rotor width. This is the hydraulic connection across the specified caliper body. Compare the complete tube route, end threads and sealing seats with the original assembly; it is not a vehicle flexline or a universal tube kit.
Manufacturer Reference
Wilwood component specifications and dimensions
Contact PMB Performance with the brake-kit identification and measurements for help selecting the part. Our team brings over 20 years of experience.
