Product details
This Wilwood four-tube kit serves specified third-generation Superlite IIA calipers. Verify the 0.810-inch rotor version and 3/8-24 IF ends. The manufacturer, Wilwood Engineering, was established by Bill Wood in 1977 and is based in Camarillo, California. It designs and builds disc brake systems with a range covering calipers, brake rotors, master cylinders, valves, fittings and brake lines. Motorsport, street-performance and specialized applications require components selected for the complete braking system.
Technical Details
- Manufacturer part number: 190-3655
- Manufacturer end-thread designation: 3/8-24 IF; verify the fitting seat as well as the thread

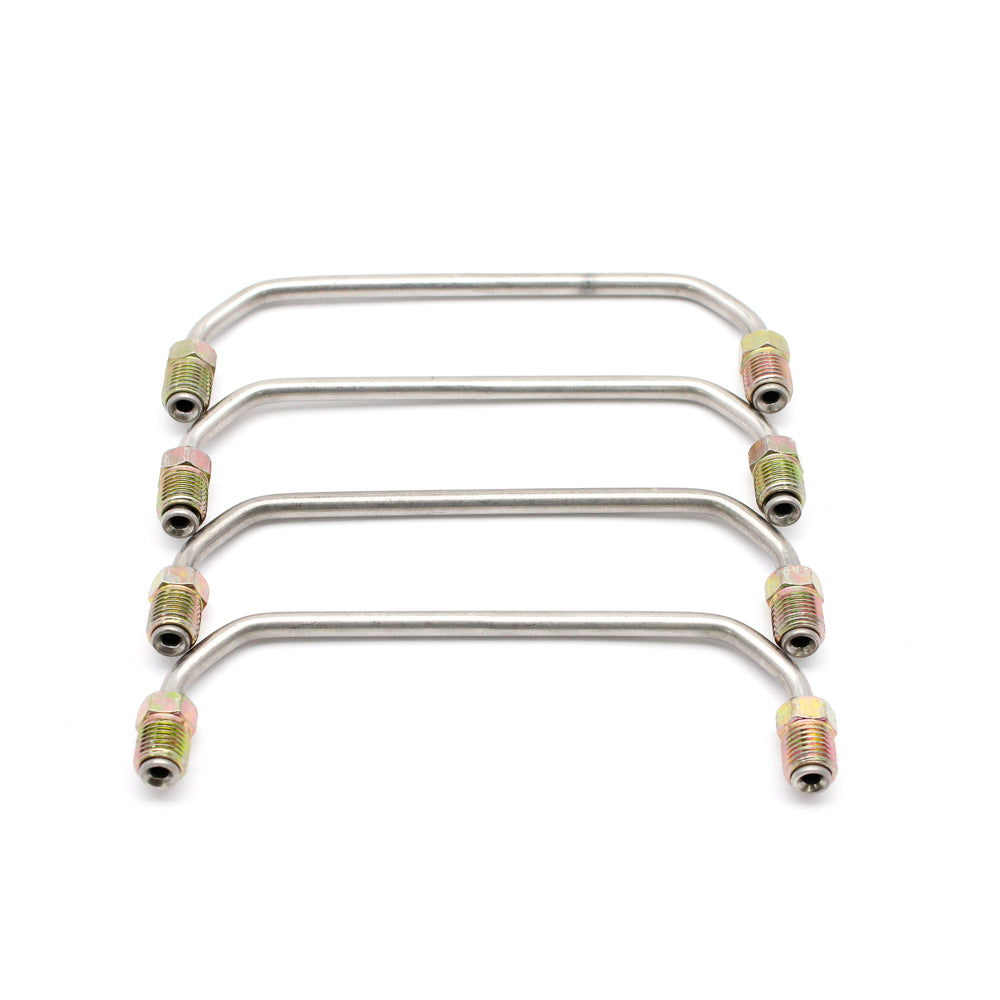

- Component: Rigid caliper hydraulic crossover tube assembly
- Material: Stainless steel
- Package: Four tubes
Fitment & Compatibility
Crossover tube assembly for 3rd gen Superlite IIA .810 wide rotor calipers. This is the hydraulic connection across the specified caliper body. Compare the complete tube route, end threads and sealing seats with the original assembly; it is not a vehicle flexline or a universal tube kit.
Manufacturer Reference
Wilwood component specifications and dimensions
