Product details

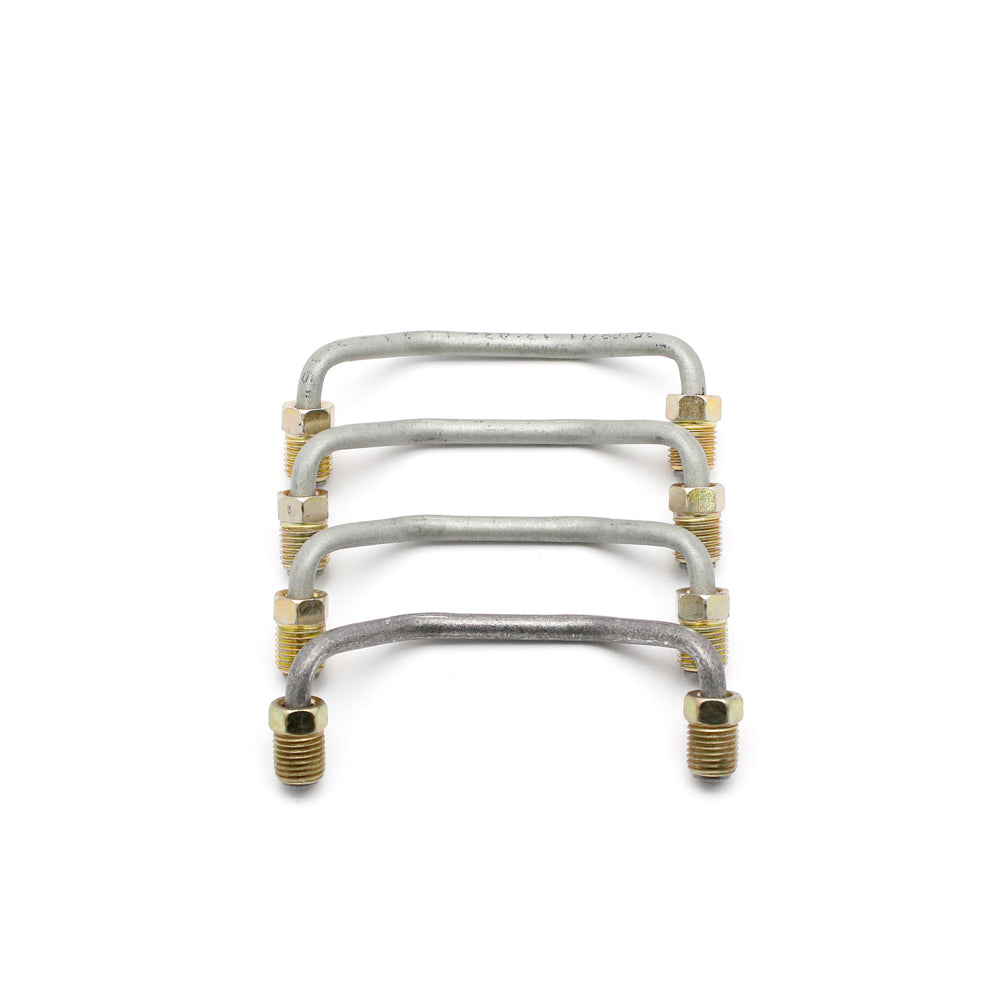

Four stainless Wilwood crossover tubes join the hydraulic passages in specified narrow-rotor Dynalite II calipers. Check the listed caliper IDs. Wilwood Engineering’s work covers the design and manufacture of disc brake systems for motorsport, street-performance and specialized applications. Bill Wood founded the company in 1977 in a business now based in Camarillo, California. Its calipers, master cylinders, brake rotors, brake lines, valves and fittings must be selected around the complete system.
Technical Details
- Manufacturer part number: 190-3650
- Material: Stainless steel
- Package: Four tubes
- Manufacturer end-thread designation: 3/8-24 IF; verify the fitting seat as well as the thread
- Component: Rigid caliper hydraulic crossover tube assembly
Fitment & Compatibility
Crossover tube assembly for Dynalite II .35 wide rotor calipers 120-1051, 120-1055. This is the hydraulic connection across the specified caliper body. Compare the complete tube route, end threads and sealing seats with the original assembly; it is not a vehicle flexline or a universal tube kit.
Manufacturer Reference
Wilwood component specifications and dimensions
PMB Performance has over 20 years of brake-parts experience. Send the installed component details if you need help checking this replacement.
