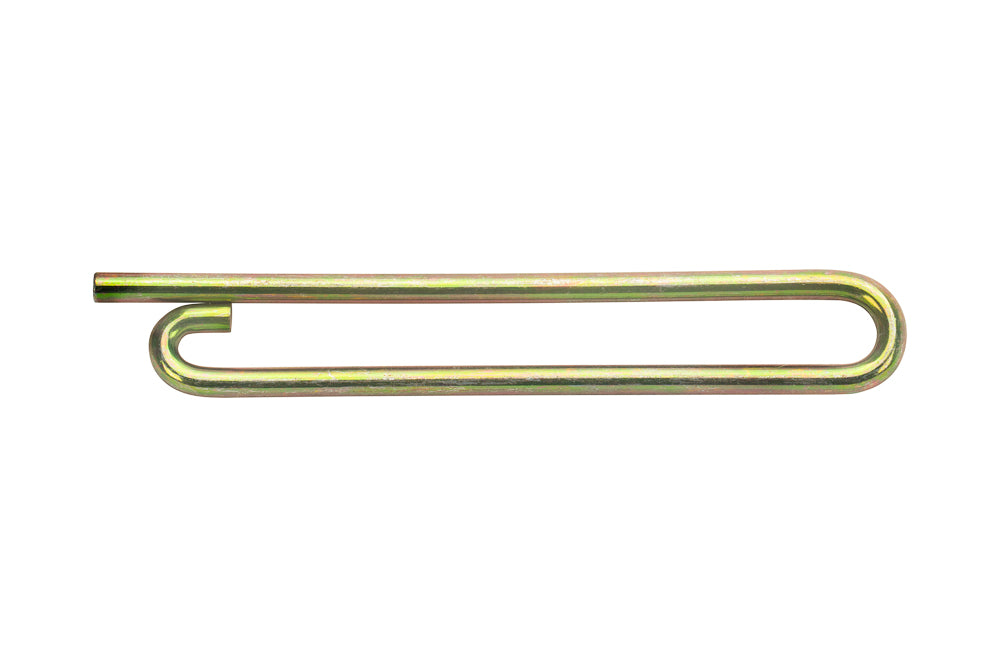

Wilwood Individual Powerlite Handbrake Retaining Pin, 0.134-Inch Wire and 2.77-Inch Length

One Wilwood retaining pin fits the specified Powerlite handbrake caliper. Check the 2.77-inch length, 0.134-inch wire and 0.86-inch rotor version. Wilwood Engineering designs and builds disc brake systems in Camarillo, California. Bill Wood established the company in 1977; it supplies brake rotors, calipers, master cylinders, valves, fittings and lines for specialized applications, street performance and motorsport. The complete brake system determines which individual components are appropriate.

Technical Details

• Manufacturer part number: 180-9453
• Package: One retaining pin
• Component: Powerlite Handbrake Pad Retaining Pin, 2.77-Inch Length
• Material: Steel
• Published pin length: 2.77 inches
• Published pin/wire diameter: 0.134 inch
• Surface finish: Plated

Fitment & Compatibility

Pad retaining pin for .86 rotor width PL-HB . Compare the pin form, length and retaining features with the installed caliper. Caliper family and rotor width must both match; a pin of similar length is not sufficient identification.

Manufacturer Reference

Wilwood component specifications and dimensions

Ask PMB Performance for help comparing the installation requirements. We have more than 20 years of experience working with brake parts and fitment.
