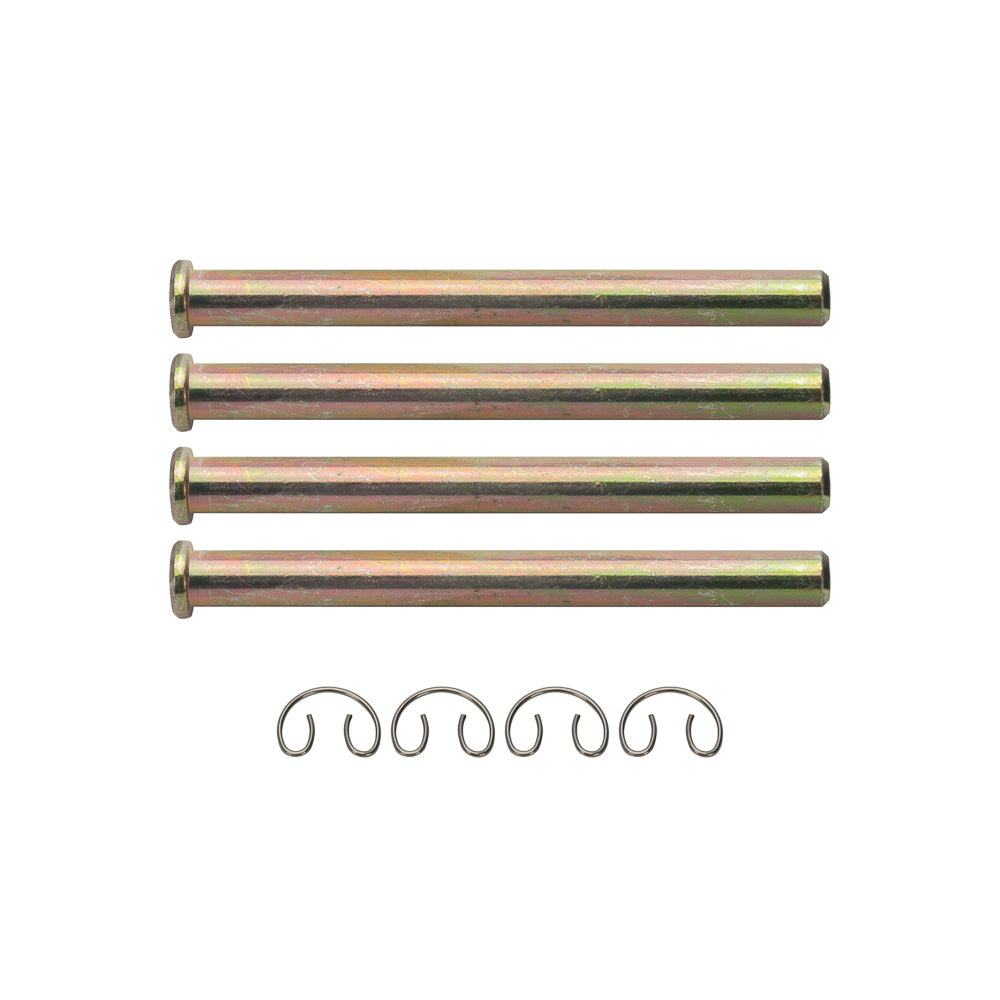

Wilwood D8-4/D8-6 Caliper Retaining Pins and Clips, Four-Pin Kit

Wilwood D8-4 and D8-6 calipers use this four-pin kit with retaining clips. Check the 3.50-inch length and pad-retention configuration. Bill Wood founded Wilwood Engineering in 1977, and the manufacturer is based in Camarillo, California. Wilwood designs and manufactures disc brake systems alongside calipers, master cylinders, rotors, fittings, brake lines and valves. The motorsport, street-performance and specialized ranges depend on components selected to work within a complete braking system.

Technical Details

• Manufacturer part number: 180-18552
• Material: Steel
• Published pin length: 3.50 inches
• Published pin/wire diameter: 0.313 inch
• Surface finish: Plated
• Package: Four retaining pins and clips for two specified D8 calipers
• Component: D8-4/D8-6 Pad Retaining Pin and Clip Kit for Two Calipers

Fitment & Compatibility

Pad retaining pins and clips for D8-4 & D8-6 calipers. Compare the pin form, length and retaining features with the installed caliper. Caliper family and rotor width must both match; a pin of similar length is not sufficient identification.

Manufacturer Reference

Wilwood component specifications and dimensions

With more than 20 years of parts and fitment experience, PMB Performance can help compare the existing brake assembly with the required component.
