Product details

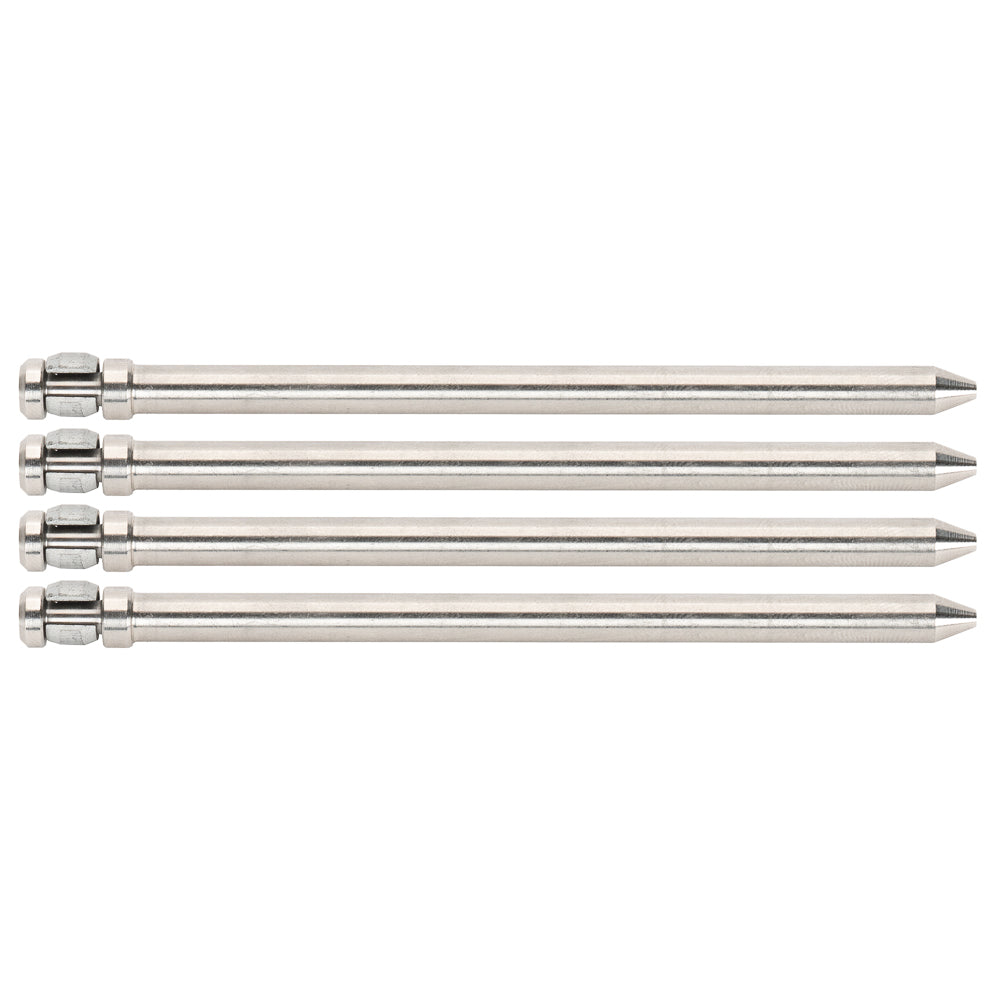

Four 4.53-inch Wilwood pins service the listed SX6R, XRS, XRZ and AERO6-DM calipers. Match the caliper version and nominal pin diameter. Founded by Bill Wood in 1977, Wilwood Engineering designs and manufactures disc brake systems from Camarillo, California. Its calipers, brake rotors, master cylinders, valves, fittings and brake lines serve motorsport, street-performance and specialized applications. Individual components must be selected for the complete brake system.
Technical Details
- Manufacturer part number: 180-17957
- Nominal diameter in ordering description: 0.236 inch; product dimension field gives0.235 inch. Confirm required retention geometry.
- Package: Four retaining pins for two specified calipers
- Component: SX6R/XRS/XRZ/AERO6-DM Pad Retaining Pin Kit, Four 4.53-Inch Pins
- Material: Steel
- Published pin length: 4.53 inches
- Published pin/wire diameter: 0.235 inch
- Surface finish: Plated
Fitment & Compatibility
Pad retainer and pin kit. Compare the pin form, length and retaining features with the installed caliper. Caliper family and rotor width must both match; a pin of similar length is not sufficient identification.
Manufacturer Reference
Wilwood component specifications and dimensions
PMB Performance can help identify the required brake component with over 20 years of parts experience. Send the kit details and original-part measurements.
