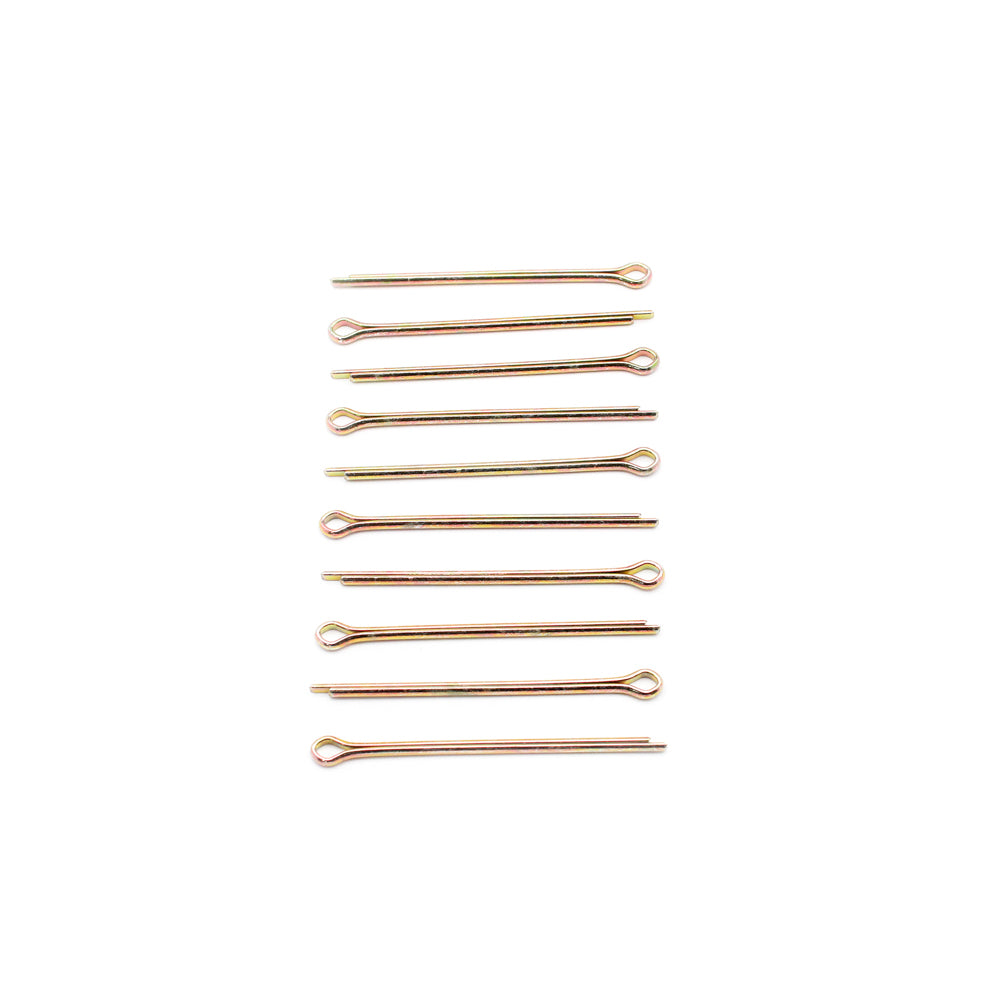

Wilwood Dynalite Pad-Retention Cotters, Ten Short 1/8 x 2.5-Inch Pins

This Wilwood Dynalite kit supplies ten 1/8 x 2.5-inch cotter pins. Confirm the thin-rotor caliper version against the original retention hardware. Established in 1977 by Bill Wood, Camarillo, California-based Wilwood Engineering designs and manufactures disc brake systems. Its master cylinders, calipers, brake rotors, lines, fittings and valves support motorsport, street-performance and specialized applications, with each component selected for its role in the complete brake system.

Technical Details

• Manufacturer part number: 180-0054
• Component: Dynalite Cotter Pin Kit, Ten 1/8 x 2.5-Inch Pins
• Material: Steel
• Published pin length: 2.50 inches
• Published pin/wire diameter: 0.125 inch
• Surface finish: Plated
• Package: 10 cotter pins

Fitment & Compatibility

Cotter Pin Kit for .35 rotor width Dynalite Series of calipers. Compare the pin form, length and retaining features with the installed caliper. Caliper family and rotor width must both match; a pin of similar length is not sufficient identification. Wilwood’s narrative refers to a 0.35-inch rotor-width caliper, while its ordering description uses 0.38 inch. Confirm the required caliper version before ordering.

Manufacturer Reference

Wilwood component specifications and dimensions

Contact PMB Performance with the brake-kit identification and measurements for help selecting the part. Our team brings over 20 years of experience.
