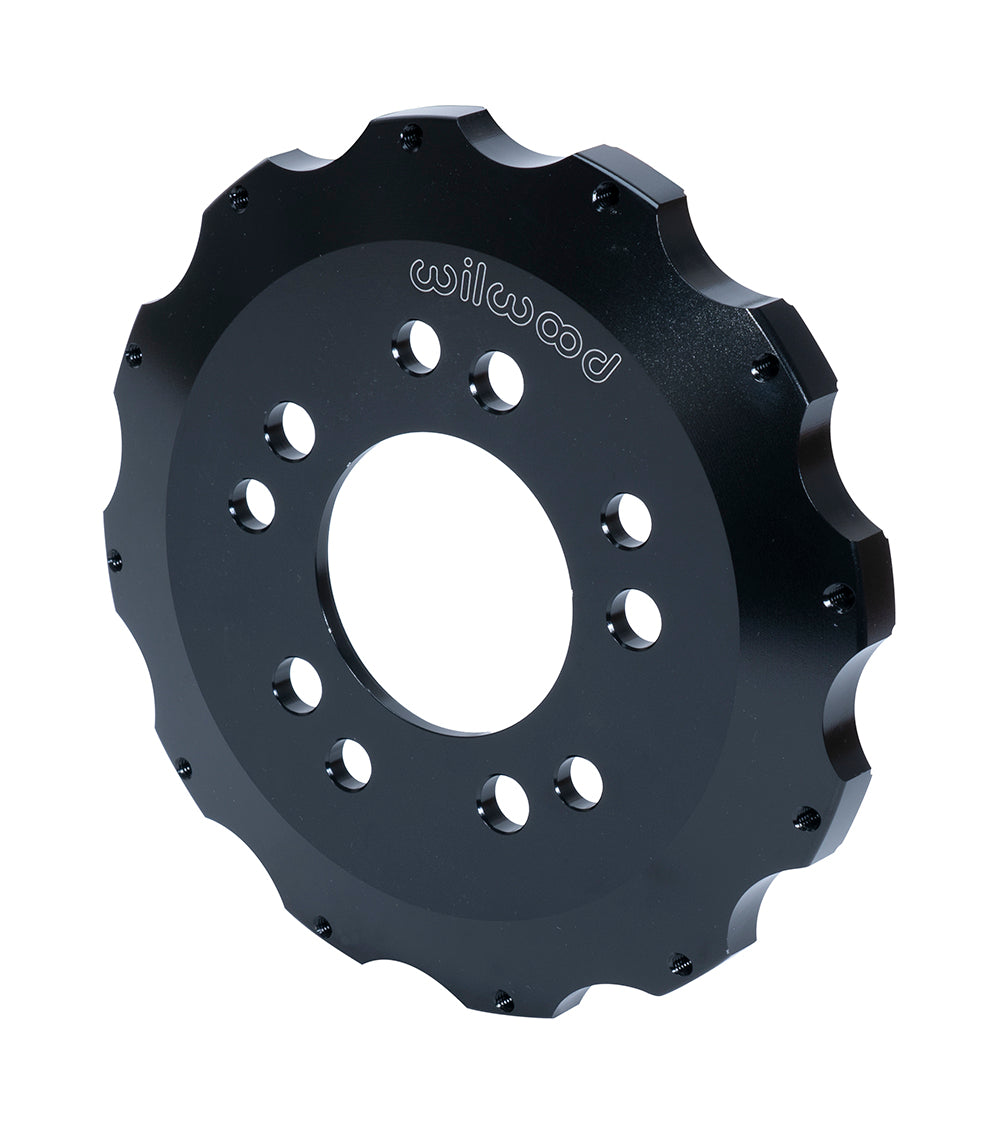

The Wilwood Mustang front hat has a 0.640-inch published offset. Verify its 3.06-inch register, dual-pattern flange and twelve-bolt rotor assembly. Wilwood Engineering’s work covers the design and manufacture of disc brake systems for motorsport, street-performance and specialized applications. Bill Wood founded the company in 1977 in a business now based in Camarillo, California. Its calipers, master cylinders, brake rotors, brake lines, valves and fittings must be selected around the complete system.
Technical Details
- Manufacturer part number: 170-9128
- Internal clearance diameter: 6.30 inches
- Mounting-face thickness: 0.31 inches
- Hub-side hole clearance diameter(s): 0.580, 0.520 inches; these are clearance dimensions, not wheel-stud thread sizes
- Manufacturer-listed attachment hardware reference: 230-8008; verify the specific rotor and attachment arrangement before ordering hardware
- Manufacturer installation note: 3.06" diameter register with counterbore for register ring.
- Component: Short-Offset Brake Rotor Hat
- Material: Aluminum
- Surface finish: Black E-Coat
- Rotor mounting method: Fixed Mount
- Position in the specified brake assembly: Front
- Hat offset: 0.640 inch
- Rotor attachment interface: 12 x 8.75 inches; rotor attachment, separate from the hub flange
- Hub-flange mounting/clearance pattern(s): 5 x 4.50, 5 x 4.75 inches; verify the actual hub and wheel-stud clearance
- Center register diameter: 3.06 inches
- Rotor mounting hole/thread designation: 1/4-20
Fitment & Compatibility
Identify the installed brake conversion before choosing this hat for Ford Mustang brake conversions. The offset, center register and attachment hardware must agree with the rotor and hub in that assembly. Select the rotor and attachment hardware separately for the documented assembly. Follow the installation drawing for engagement and clearance at every mounting point.
Manufacturer Reference
Wilwood component specifications and dimensions
Contact PMB Performance with the brake-kit identification and measurements for help selecting the part. Our team brings over 20 years of experience.
