Product details

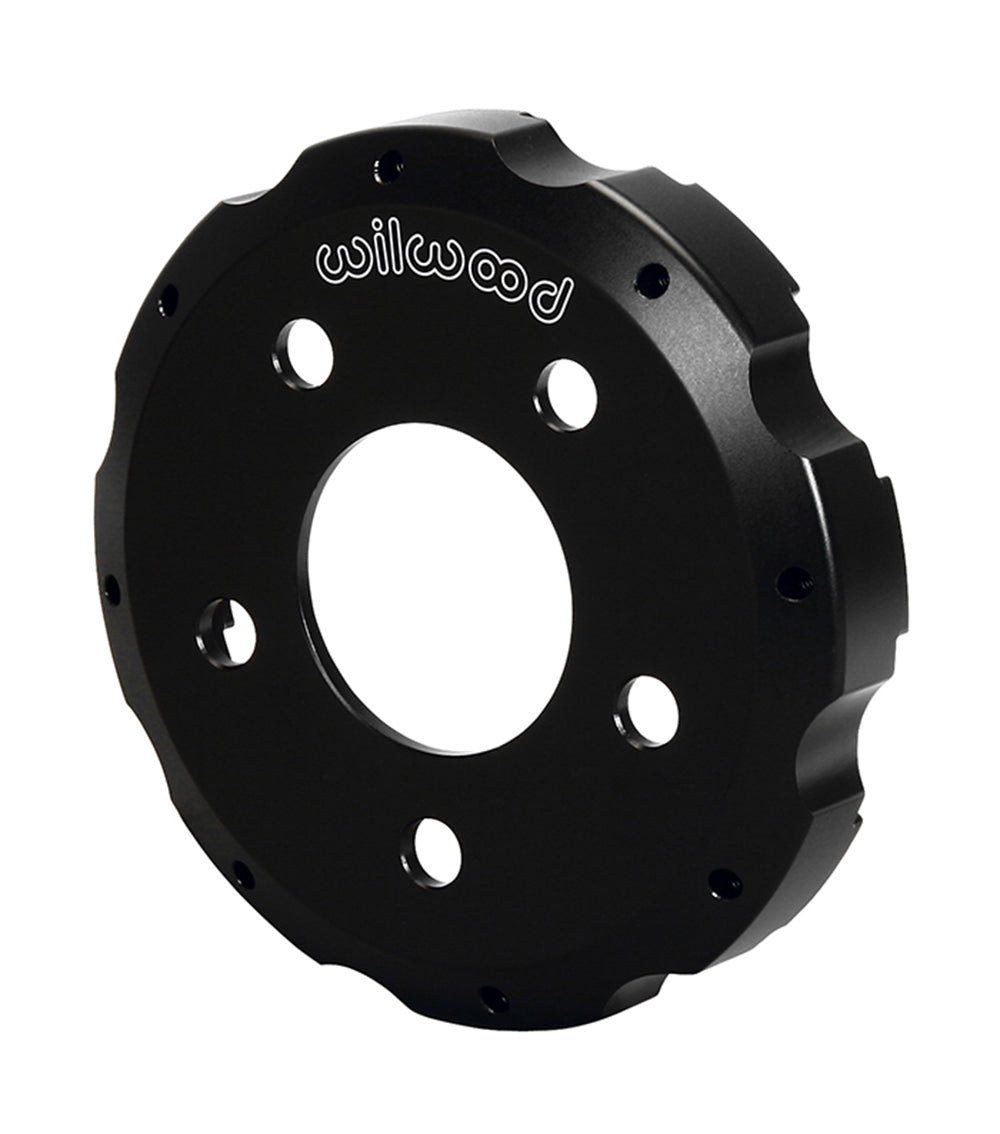

Wilwood's C4 Corvette rear hat combines 0.880-inch offset with a 2.78-inch register. Verify the actual conversion and eight-bolt rotor interface. Bill Wood established Wilwood Engineering in 1977. Based in Camarillo, California, the company designs and builds disc brake systems for motorsport, street-performance and specialized uses, including calipers, rotors, master cylinders, valves, fittings and brake lines. Each part must match the requirements of the whole braking arrangement.
Technical Details
- Manufacturer part number: 170-8493
- Rotor mounting hole/thread designation: 5/16-18
- Internal clearance diameter: 6.00 inches
- Mounting-face thickness: 0.30 inches
- Hub-side hole clearance diameter(s): 0.520 inches; these are clearance dimensions, not wheel-stud thread sizes
- Manufacturer-listed attachment hardware reference: 230-8390; verify the specific rotor and attachment arrangement before ordering hardware
- Component: Short-Offset Brake Rotor Hat
- Material: Aluminum
- Surface finish: Black E-Coat
- Rotor mounting method: Fixed Mount
- Position in the specified brake assembly: Rear
- Hat offset: 0.880 inch
- Rotor attachment interface: 8 x 7.00 inches; rotor attachment, separate from the hub flange
- Hub-flange mounting/clearance pattern(s): 5 X 4.75 inches; verify the actual hub and wheel-stud clearance
- Center register diameter: 2.78 inches
Fitment & Compatibility
This component belongs to the specified C4 Corvette rear conversion. It is an aluminum rotor-mounting hat with an eight-bolt ring interface, not an iron parking-drum hat. Verify the rear assembly's 0.880-inch offset and 2.78-inch center, along with the required rotor fasteners and caliper location. No separate parking-brake mechanism is included in the component identity.
Manufacturer Reference
Wilwood component specifications and dimensions
