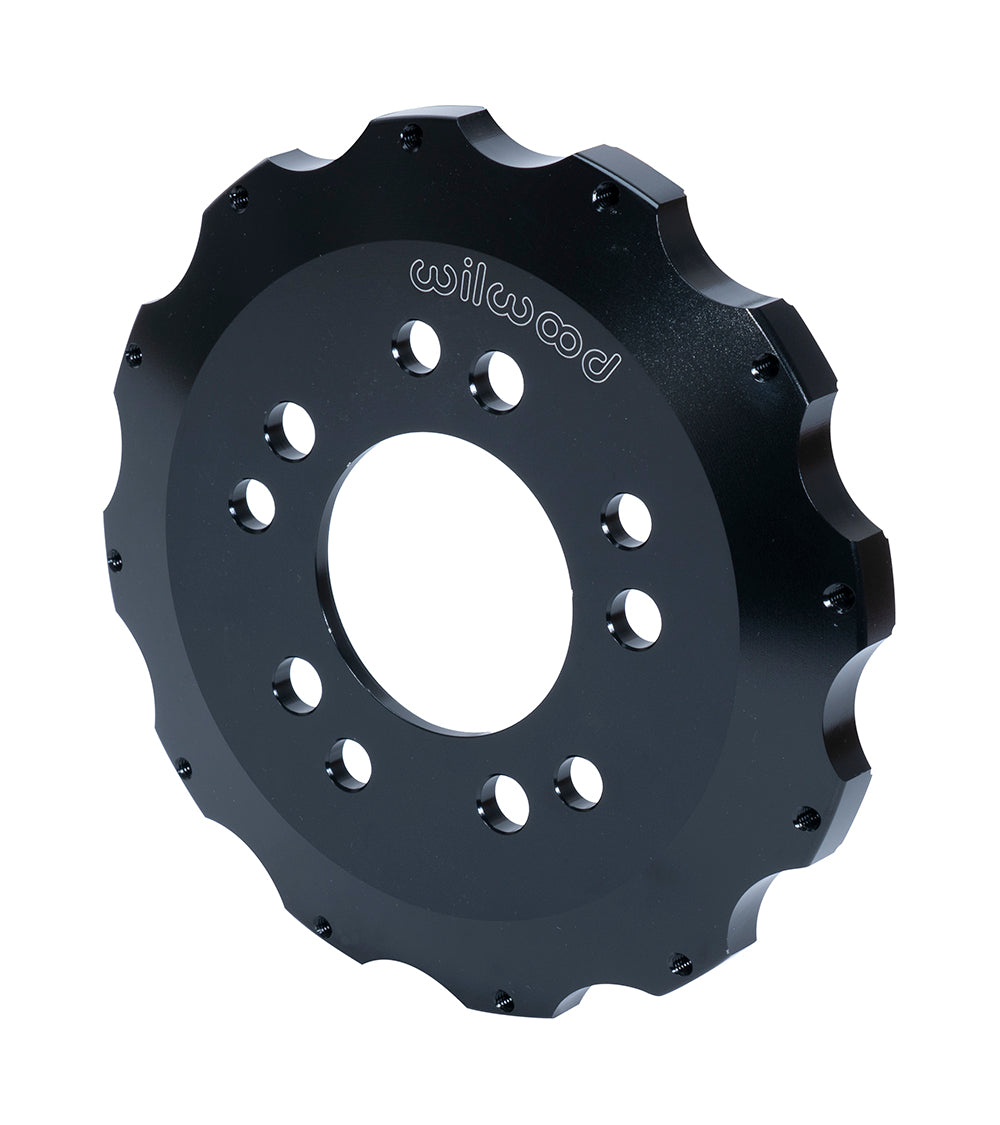

Wilwood Front Camaro (1993–2001) Hat with 0.880-Inch Offset

Wilwood lists this 0.880-inch-offset front hat for 1993–2001 Camaro conversions. Match the 2.78-inch register and twelve-bolt rotor ring. Disc brake system design and manufacturing are Wilwood Engineering’s focus. Bill Wood founded the Camarillo, California company in 1977; its range spans brake rotors, master cylinders, calipers, fittings, valves and brake lines for motorsport, specialized and street-performance applications. The choice of individual components depends on the complete brake system.

Technical Details

• Manufacturer part number: 170-6837
• Hub-side hole clearance diameter(s): 0.560, 0.520 inches; these are clearance dimensions, not wheel-stud thread sizes
• Manufacturer-listed attachment hardware reference: 230-4572; verify the specific rotor and attachment arrangement before ordering hardware
• Component: Short-Offset Brake Rotor Hat
• Material: Aluminum
• Surface finish: Black E-Coat
• Rotor mounting method: Fixed Mount
• Position in the specified brake assembly: Front
• Hat offset: 0.880 inch
• Rotor attachment interface: 12 x 8.75 inches; rotor attachment, separate from the hub flange
• Hub-flange mounting/clearance pattern(s): 5 x 4.50, 5 x 4.75 inches; verify the actual hub and wheel-stud clearance
• Center register diameter: 2.78 inches
• Rotor mounting hole/thread designation: 1/4-20
• Internal clearance diameter: 7.25 inches
• Mounting-face thickness: 0.30 inches

Fitment & Compatibility

Match this component to the documented Chevrolet Camaro 1993–2001 brake conversions. Confirm the mounting stack, center location and rotor hardware; vehicle model alone does not establish compatibility with a modified brake system. Select the rotor and attachment hardware separately for the documented assembly. Follow the installation drawing for engagement and clearance at every mounting point.

Manufacturer Reference

Wilwood component specifications and dimensions
